Introduction to Core Components of the Cement Rotating Dryer

Date: 7/18/2014     From: Fote Machinery     Author: admin

The cement rotating dryer also known as dryer drum is the most common dryer equipment in China. This new type of dryer made of our company generally consists of the following components which all play a core role for the dryer’s application:

1. The supporting device: the wheel set on cylinder drives the cylinder of the dryer to rotate together. The riding wheel of supporting belt is mounted on the rack. In order to limit axial movement of cylinder, the rack is also equipped with catch wheel whose bevel has a 5mm clearance with the bevel of tire.

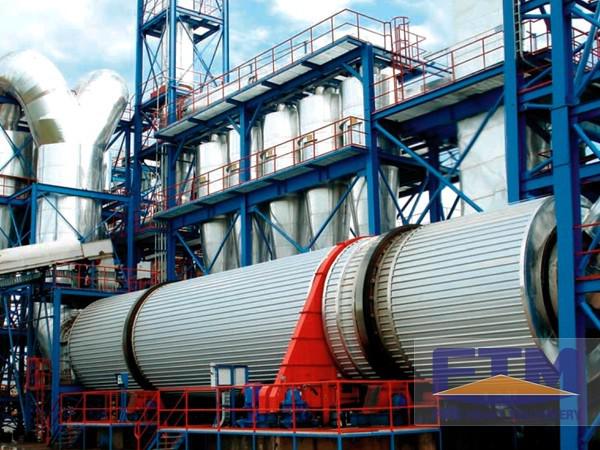

cement rotating dryer

2. The transmission device: the main gear set on the cylinder of cement rotating dryer is fixedly connected with cylinder and the main gear is driven by pinion. Motor drives the cylinder to do rotary motion through V-belt, reduction box, pinion and main gear.

3. The cylinder of the dryer: the dryer is welded by steel in circular form. The retention ring and spiral plate are welded at the feeding end. In the cylinder, it is equipped with the lifting plate and it has the annular barrier-material ring that forms the material lining. In the heating process of wet materials, the water is evaporated so that the moisture will be gradually reduced. That is the drying process. The dried material is discharged from the low end of cylinder.

4. Accessories: for drying production, we need to configure ancillary equipment for China dryer drum. Generally, it should be equipped with feeding conveyor, quantitative feeder, chute, vibrating conveyor or heatproof belt conveyor and so on.
