Slag Dryer

Slag Dryer

Feedstock Water Content: 20 ± 3 %

Production Capacity: 10 - 30 t/h

Application Range: Industries of slag, construction materials, metallurgy, ore beneficiation, chemical engineering and cement production.

Processible Materials: Grain slag, blast furnace slag, coal ash, coal cinder, slag, carbide slag, limestone, clay, river sand and silica sand.



Chat Online Get Latest Price

Overview

Slag Dryer Introduction

Slag dryer, also known as granulating slag dryer,steel slag dryer,gold ores dryer and lead powder dryer, is mainly made up by rotary cylinder, wind equipment, transmission equipment, hot air equipment, deceleration machine, supporting devices, high-speed scattered equipment, feed plate, the cleaning device, transmission device, sealing device, etc.

 The slag dryer has advantages of reasonable design, perfect workmanship, stable performance, advanced technology, high output, low energy consumption, high mechanization degree, etc.

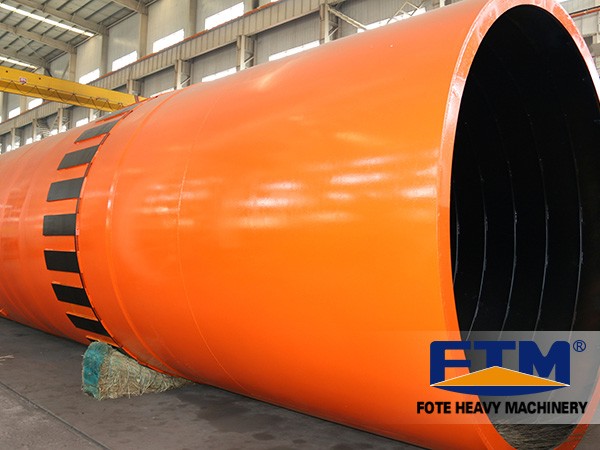

dryer

Slag, limestone, clay, sand, quartz sand, slime, sludge and other materials with high moisture content can be dried by slag dryer.

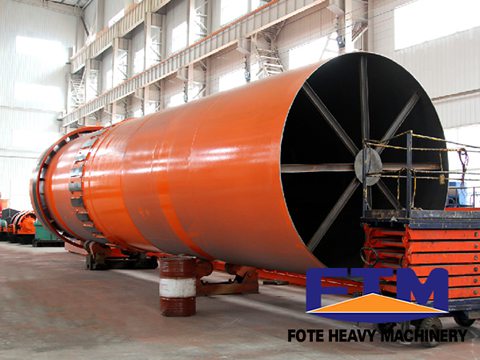

Slag Dryer

Slag Dryer Features

1. Slag dryer can handle a large quantify and has strong anti- overload capability, high thermal efficiency and low drying cost.
2. Fluorite ore dryer adopts downstream drying method, the material and heat flow get into the drying machine from the same side. The temperature of the dryer exit is low, and it has high heat efficiency.
3. Gold ores dryer uses a new combined feed device which overcomes the "wind tunnel" phenomenon of the traditional dryer.
4. Lead powder dryer can satisfy the size and moisture requirements of different customers after the drying of slag materials.

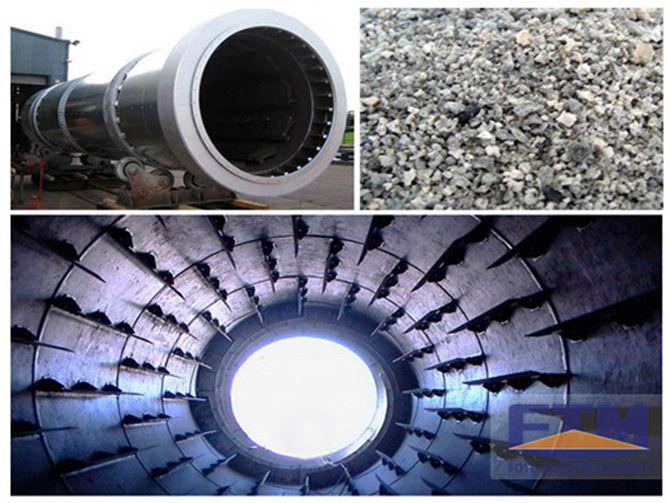

Slag Dryer

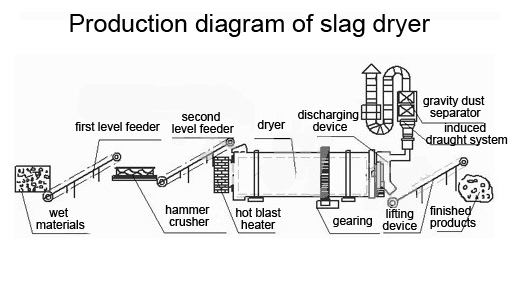

Slag Dryer Working Principle

The slag is sent into the hopper by the belt conveyor or bucket elevator and sent into feed end through feeding pipe of feeder hopper. The dryer cylinder is a rotating cylinder with slight incline to the horizontal line. The materials are sent from the higher end and the heat-carrying agents are sent from the lower end to be countercurrent contact with the materials. Some heat-carrying agents and materials flow altogether into the end of the barrel with the gravity effect as the rotation of the cylinder. In the process of moving forwardness in the barrel, the wet materials are directly or indirectly gained the heat of the heat-carrying agent and be dried, then the discharge end discharges finished products through belt conveyor or screw conveyor.

Parameter

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
