sand dryer rotary drum

sand dryer rotary drum

Outer Cylinder Diameter: 2.5 - 3.6 m

Production Capacity: 25 - 30 t/h

Application Range: Industries of mining, ore beneficiation, construction materials, chemical engineering and metallurgy.

Processible Materials: Coal, iron powder, yellow sand, molding sand, slag and coal cinder.



Chat Online Get Latest Price

Overview

Three-drum Dryer Introduction

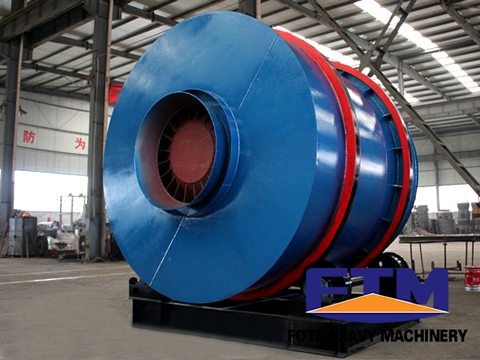

The three-drum dryer,three-drum drying machine, three-cylinder dryer is contact internal heating conduct dewatering unit like double-drum dryer, is mainly composed of inner cylinder, outer cylinder, roller, tire support device, gear, discharge port, outlet and sealing devices.

Sand Dryer

Three-drum Dryer Features

Three-drum dryer or double-drum dryer has compact structure and covers a small area which is half of the single drum dryer does. Three-drum dryer works reliably with low energy consumption and high heat efficiency which realizes good material drying effect, simple automation control and few operating staff.

Three-drum Dryer

Three-drum Dryer Working Principle

Materials enter the inner side of the drum through the feeding device to realize current flow drying process. They get raised and scattered under the shoveling plate in a spiral advancing way to exchange heat. Then the materials enter the middle layer of the inner wall through the other end to realize counter current drying process. They are lifted in over and over in the middle layer which advance in two-steps forward and one-step back way. They absorb heat from both inner drum and middle drum, which extend the drying time and realize the best drying condition. Finally, materials fall into the external layer of the drum from the other end of the middle layer, processing in a rectangle multi-loop way. The dried materials move quickly out of the drum under the hot air, while the wet ones remain because of their own weight. Materials are dried completely inside the rectangle shoveling plate and then cooled by the single drum cooler, thus finishing the whole drying process.

Parameter

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
