Ball Mill

Ball Mill

Feed Size: ≤20 - ≤25 mm

Processing Capacity: 1.5 - 338 t

Processible Materials: Coal, salt, chalk, gypsum, tile, limestone, etc.

Application Range: Cement, silicate product, new building materials, refractory matter, chemical fertilizer, ferrous and non-ferrous metals, glass ceramic, etc.



Chat Online Get Latest Price

Overview

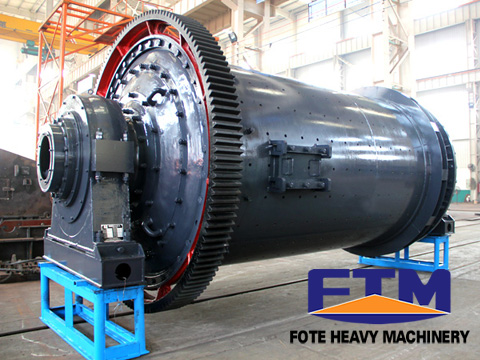

Ball Mill Introduction

Ball mill also can be called ball mill machine or ball grinding mill, is the key equipment for grinding materials after materials are being primarily crushed. Ball mill machine is widely used for grinding all kinds of ores and other grindable materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry. According to different raw materials and discharging methods, ball grinding mills can be divided into dry type ball mills and wet type lattice ball mills.

Fote is a professional ball mill manufacturer, producing ball mill machine with verious models, welcome to visit our company for cooperation, thank you.

Ball Mill

ball mill

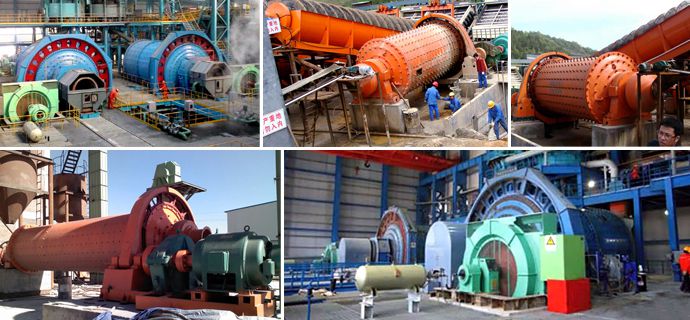

Ball Mill Features

1. Improved grinding efficiency.
2. The ball mill machine is with large discharging mouth and high production capacity.
3. Easy to install and maintain.

Ball Mill

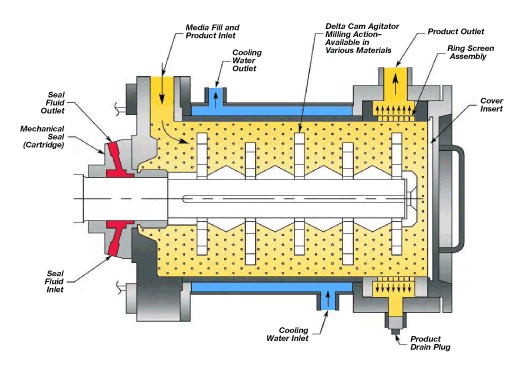

Ball Mill Working Principle

1. Ball mills are a horizontal type cylinder rotary devices and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process.

2. Materials spirally and evenly go into the first cabin of the ball grinding mill through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many grinding balls with different specifications.

3. The cylinder of small ball mill machine rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials.

4. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are grinding balls to further grind the materials.

5. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Parameter

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Ф2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 56.6
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 69
Ф2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 137
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 158
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 175
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Ф4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Ф4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
