Vibrating Feeder

Vibrating Feeder

Feed Size: 300 - 1050 mm

Processing Capacity: 80 - 1000 t/h

Processible Materials: Pebbles, granite, basalt, iron ore, limestone, quartz stone, gangue, construction waste.

Application Range: Sand making station, concrete sand making, dry mixed mortar, machine-made sand, desulfurationof power plant, silica sand, etc.



Chat Online Get Latest Price

Overview

Vibrating Feeder Introduction

The vibrating feeder also can be called vibratory feeder,vibrating grizzly feeder and vibration feeder, can evenly and continuously feed bulk and granular materials into receiving device, so it's important equipment in sand production line. The vibrating grizzly feeder or feed grizzly can also feed materials to belt conveyors, bucket elevator, screening equipment, crushing equipment and grinding machines. The vibrating feeder is also used for automatic blending, quantitative packing and automation in the automatic control production.

Vibrating Feeder Features

The exciting force of the vibrating feeder can be changed and adjusted easily and reliably at any time; and the vibrating motor is the exciting source which features little noise, low power consumption, good adjustment and no material clashing phenomenon. The vibratory feeder is with simple structure, reliable operation, easy installation and arrangement, light weight, small size and easy to maintain.

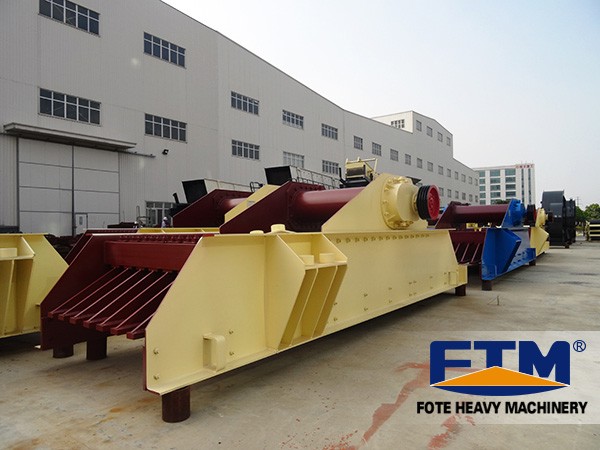

Vibrating feeder

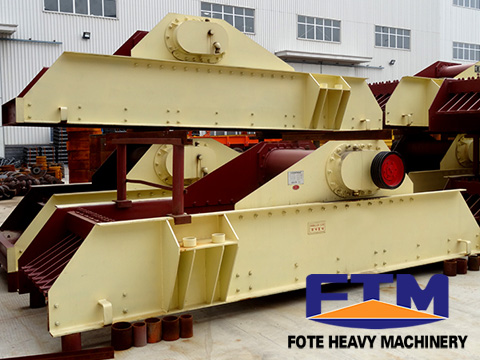

Vibrating Feeder

Vibrating Feeder Working Principle

In the production flow, feeder machine able to evenly and continuously send the massive and granular materials from the storage bunker to the material receiving device at regular time. In the stone and sand production line, it is able to continuously and evenly feed materials to the crushing machines and coarsely screen the materials.

Parameter

Model Max.
Feeding
Size
(mm)
Processing
Capacity
(t/h)
Motor
Power
(kw)
Obliquity
of material
trough
(°)
Trough
size
(mm)
Dimensions
(L×W×H)(mm)
GZD-650×2300 300 80-100 1.2×2 10-20 650×2300 2300×1360×780
GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
GZD-1500×3600 1050 450-1000 7.5×2 10-20 1500×3600 3900×2000×1750
GZD-2000×3600 1200 550-1000 10×2 10-20 2000×3600 3600×2000×1750
GZD-2500×5000 1500 650-1500 18×2 10-20 2500×5000 5000×2500×1800
ZSW-380×95 500 100-180 11 0-10 3800×960 3920×1640×1320
ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
ZSW-600×150 800 500-900 30 0-10 6000×1300 6086×2662×1912
ZSW-600×180 900 700-1300 45 0-10 6000×1500 6310×3262×2230
ZSW-600×200 1200 800-1500 55 0-10 6000×2000 6310×3462×2230
