Counterattack Mobile Crushing and Screening Plant

Counterattack Mobile Crushing and Screening Plant

Transportation Length: 13500 - 15600 mm

Transportation Width: 2830 - 3100 mm

Transportation Height: 4350 - 4480 mm

Weight: 31 - 49 t



Chat Online Get Latest Price

Overview

Counterattack Mobile Crushing and Screening Plant Introduction

Mobile crusher also can be called crusher mobile, mobile crushing plant and crusher portable. Working principle of mobile crusher is substantially as same as and that of mobile jaw crusher station, except that the material is uniformly fed into mobile crushing plant through conveyor belt for crushing, so the crusher mobile or crusher portable is currently one of the most popular mobile crushing plant.

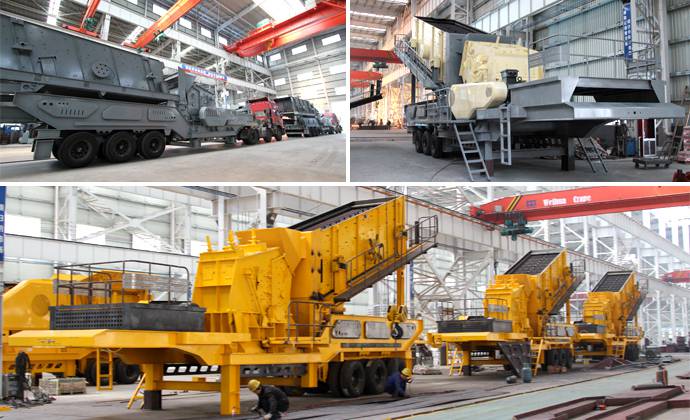

mobile crusher

Counterattack Mobile Screening Station

Counterattack Mobile Crushing and Screening Plant Features

Mobile crusher is installed as one unit, with overall strong coordination, reasonable and compact space layout for saving time and space and increasing flexibility, whilegreatly reducing investment cost. Fote mobile crushing plant is configured device easy to maintain.

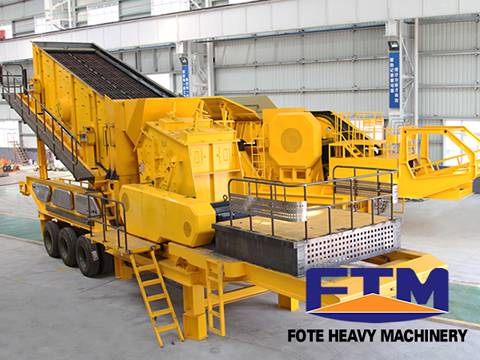

 Mobile Crushing and Screening Plant

Counterattack Mobile Crushing and Screening Plant Working Principle

Material is preselected through the feeder, then put into sand production after being crushed by impact crusher. The closed system with vibrating screen can achieve the circle crushing and effectively reduce sand processing steps. Finished material will be discharged and transported through conveyor.

Parameter

Items FTM3S1848V81 FTM3S1860V92 FTM3S2160V140
Transportation length(mm) 13500 15600 15600
Transportation width(mm) 2830 2830 3100
Transportation height(mm) 4350 4350 4480
Max. length(mm) 14650 16300 16300
Max. width(mm) 3900 3900 3900
Max. height(mm) 5980 6400 6550
Weight(t) 31 36 49
Tyre configuration Dual axial Tri-axial Tri-axial
Sand maker VSI-8518 VSI-9526 VSI-1140
Discharging belt conveyor B800×2.2M B800×2.5M B1000×2.5M
Belt conveyor under vibrating screen B800×7M B800×8M B1000×8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
