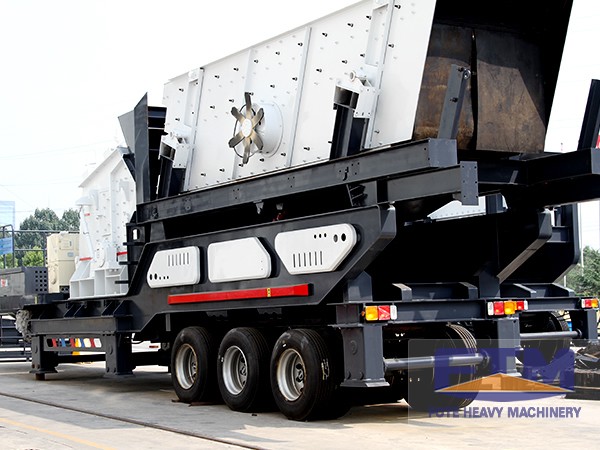

Tire Type Impact Mobile Screening Station

Tire Type Impact Mobile Screening Station

Maximum Length: 12500 - 15500 mm

Maximum Width: 2900 - 3300 mm

Maximum Height: 4100 - 5300 mm

Weight: 39 - 92 t



Chat Online Get Latest Price

Overview

Tire Type Impact Mobile Screening Station Introduction

Tire type impact mobile screening station (other names: tyre mobile crusher, mobile plant crusher stone, mobile construction station, mobile stone crushing machine, mobile mining plant) is one of main mobile crushing stations of Fote, equipped with high-performance impact crusher (or sand maker) and vibrating screen, with advantages of high flexibility and adaptability, low material transportation expense, flexible combination, light weight, etc.

Tire Type Impact Mobile Screening Station Features

1. High-performance crusher;
2. Integration of vehicle motor and control box;
3. Equipped with jaw crusher, cone crusher, vertical shaft impact crusher, feeder and shaker;
4. integrated vehicle installation with belt conveyor, vibrating screen and crusher;
5. Vehicle installation support, efficient and convenient to station on crushing site;
6. Steering axle traction, easy to road transport.

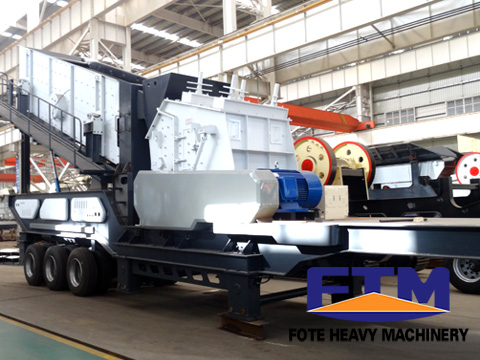

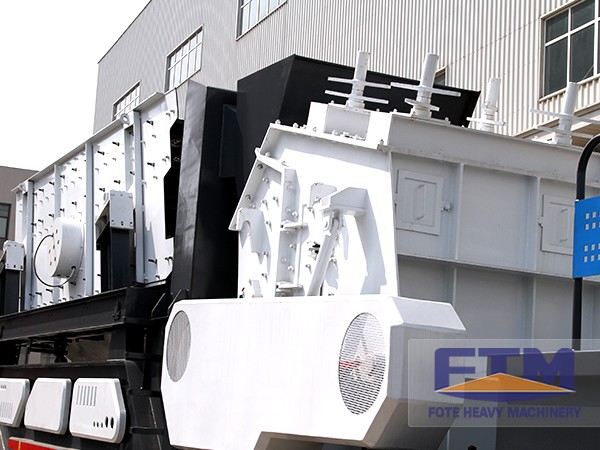

Impact Mobile Screening Station

Tire Type Impact Mobile Screening Station Working Principle

Tire mobile crusher and other stations, are transmitted through diplomatic material, then the material into the impact of mobile crushing station, equipped with the device through the conduct of a cyclic process operations, ultimately crushing effect.

Parameter

Model FTM938E69 FTM1149E710 FTM1349E912 FTM1349EW86 FTM1349EW110
Transportation Length (mm) 12600 13500 15500 14600 15500
Transportation Width (mm) 2550 2550 2950 2550 2950
Transportation Height (mm) 3870 4500 4500 4500 4500
Maximum Length(mm) 12500 14000 14600 14600 15500
Maximum Width (mm) 2900 2950 3300 3300 3300
Maximum Height (mm) 4100 4900 5300 5300 5300
Weight(t) 39 57 83 65 92
Tire Configuration Dualaxial Triaxial Triaxial Triaxial Triaxial
Jaw Crusher PE600×900 PE750×1060 PE900×1200 PEW860 PEW1100
Maximum Feeding Size(mm) 480 630 750 730 940
Discharge Opening Size (mm) 65-160 80-140 100-200 75-225 150-275
Capacity(t/h) 90-180 110-320 220-450 150-500 300-650
Vibrating Feeder

ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130 ZSW490×130
Main Belt Conveyor

B800×8.5M B1000×9.5M B1200×10.5M B1200×9.5M B1200×9.5M
Side-opening Belt conveyor(Optional)

B500×3M B650×4.5M B650×4.5M B650×4M B650×4M
Genset(Optional)(kw)

200 250 270 320 400
Iron Separator(Optional)

RCYD(C)-8 RCYD(C)-10 RCYD(C)-12 RCYD(C)-12 RCYD(C)-12
