Tire Type Cone Crusher Mobile Screening Station

Tire Type Cone Crusher Mobile Screening Station

Transportation Width: 3100 mm

Transportation Height: 4500 mm

Weight: 34.5 - 49.5 t



Chat Online Get Latest Price

Overview

Tire Type Cone Crusher Mobile Screening Station Introduction

Tire type cone crusher mobile screening station, with other names of tyre mobile cone crusher, mobile cone crusher, mobile quarry plant, portable aggregate crusher, has processing capacity, is currently the most common-used mobile crushing plant in mining, construction, railways, highways, etc.

Tyre mobile cone crusher is equipped with cone crusher and conveyors, can run and move fast, so as to effectively handle the material and produce fine-grained sand and gravel products with higher hardness.

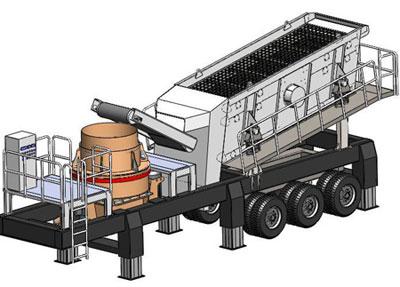

Mobile Cone Crusher

Tire Type Cone Crusher Mobile Screening Station Features

The crushing chambers of cone crusher equipped on the tire type cone crusher mobile screening station can be adjusted according to actual need, which expands the use areas and scope of cone mobile crushing station. The entire unit is integrally mounted to coordinate operations, to fully embody its advantages of convenience and flexibility.

Mobile quarry plant and portable aggregate crusher can be customized according to customer requirements, in strict accordance with the actual situation of production space, to greatly improve its productivity.

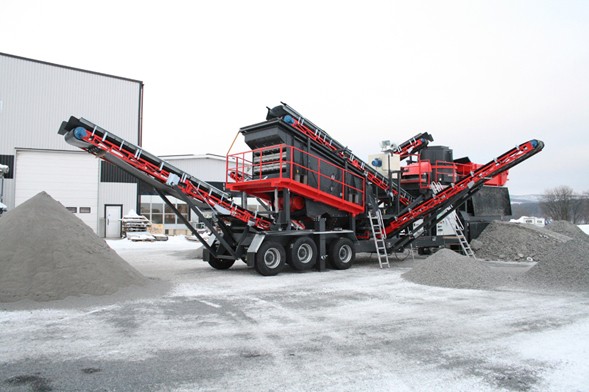

Mobile Cone Crusher


Tire Type Cone Crusher Mobile Screening Station Working Principle

Material is evenly fed into the crusher by feeder, then be crushed by primary cone crusher, so as to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be transported through conveyor for continuous crushing.

Parameter

Items

FTM3S184PYF90

FTM3S186PYF13

FTM3S1860PYG11

Transportation(without and with length(mm) diesel generator 1400 16000 16000
Transportation width(mm) 3100 3100 3100
Transportation height(mm) 4300 4500 4500
Max. length(mm) 14000 16400 16400
Max. width(mm) 3400 3400 3400
Max. height(mm) 4700 4700 4700
Weight(t) 34.5 49.5 41
Tyre configuration Dual axial Tri-axial Tri-axial
Cone crusher

PYF900

PYF1300

PYG1100

Under vibrating screen B800×7M B800×7M B800×7M
Vibrating Screen 3YZS1848 3YZS1860 3YZS1860
