Tertiary Crusher

Tertiary Crusher

Feeding Size: <120 - <190 mm

Discharging Size: 5 - 10 mm

Power: 37 - 315 kw

Theoretical Weight: 3.9 - 49.7 t



Chat Online Get Latest Price

Overview

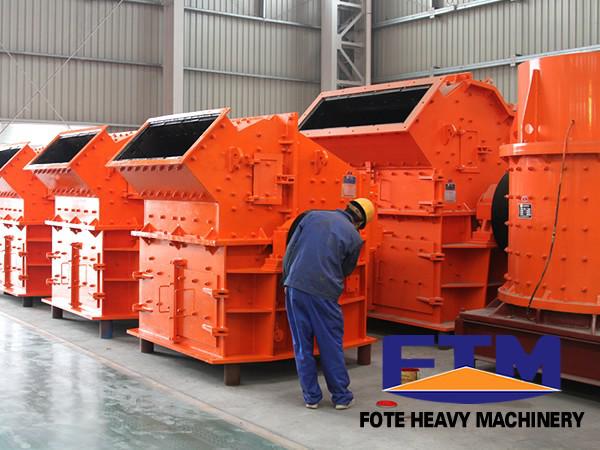

Tertiary Crusher Introduction

The tertiary crusher is with wide applications range and advanced international technology, and it is the most effective and reliable crushing machine at present, widely applied to fine crushing and medium crushing of grinding materials, refractory materials, cement, silica sand and steel shot.

Tertiary crusher is high efficient and energy saving crusher which can save 50% energy compared with the traditional fine crusher, so it's the most advanced fine crushing equipment in the world.

Tertiary Crusher

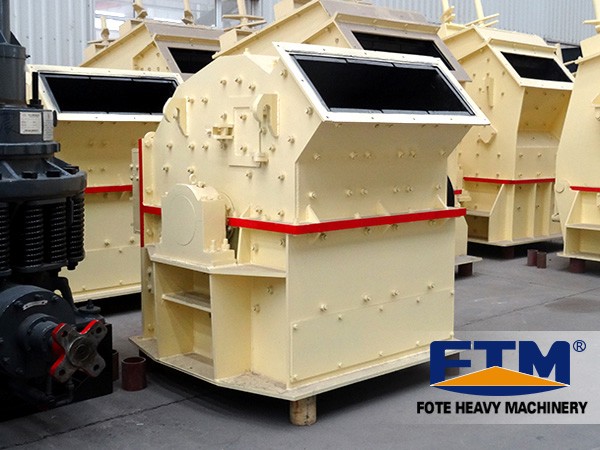

Tertiary Crusher Features

Five designing features of the high efficient tertiary crusher or fine crusher: high line speed, abrasion resistance materials, machine structure, design of the grid plate and the influence of rigidity attrition crushing. All these features make the fine crusher able to effectively control the secular stability of discharging granularity. Tertiary crusher also has advantages of high crushing efficiency, low consumption, dust prevention, long service life of quick-wear parts, low cost of fittings, high running rate and simple maintenance.

tertiary crusher

Tertiary Crusher

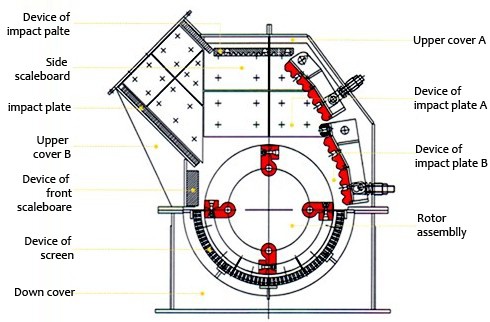

Tertiary Crusher Working Principle

Advantages and features of the high efficient fine crusher: materials entering the cavity successively fall on the high speed spinning hammer and get crushed for the first time at the hammering zone under the action between the hammer and counter board. After high-frequency hammering and striking, materials fall on the median septum piling up and then they slide down on the bottom dumping disk of the high speed spinning rotor. Then materials are thrown to the impact plate at high speed and then are enforced to be impact, crushed and ground when passing the mobile board hammer.

Parameter

PXJ tertiary impact crusher
Rotorø×Width
(mm)
Specification
800×400
800×600
800×800
1010×1010
1200
×1200
1400
×1400
1600
×1600
1800
×1800
Feed opening size(mm)
400×185
500×250
550×300
1000×350
1200
×450
1500
×500
1600
×550
1800
×800
Feeding size (mm)
<120
<180
<180
<180
<180
<190
<190
<190
Discharging size (mm)
0-10
0-10
0-10
0-10
0-10
0-10
0-10
0-10
Adjustable range of discharge opening (mm)
5-50
5-50
5-50
5-50
5-50
5-50
5-50
5-50
Cement Clinker(t/h)
10-30
1040
20-45
25-55
35-90
50-150
85-210
125-270
Limestone(t/h)
18-45
23-55
28-65
35-75
45-110
50-150
95-260
140-310
Power(kw)
4P   37KW
4P   45KW
4P   45KW
4P   55KW
6P   110KW
6P   160KW
4P   250KW
4P   315KW
Theoretical weight 3.9 4.5 6 10.5 14.4 22 35 49.7
