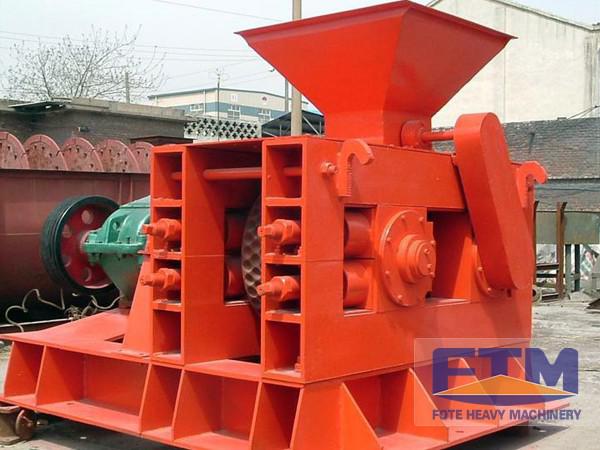

Strong Briquetting Machine

Strong Briquetting Machine

Diameter of Roller: 520 - 1200 mm

Width of Roller: 196 - 900 mm

Output: 2.2 - 40 t

Weight: 13 - 110 t



Chat Online Get Latest Price

Overview

Strong Briquetting Machine Introduction

Fote strong briquetting machine, also known as strong briquette machine, is mainly applied to doing cold ball pressing of coal powder, coal slime, coal, coke powder, coking coal, gold powder and refractory matter. All powder materials that need drawing up will be pressed by strong briquetting machine.

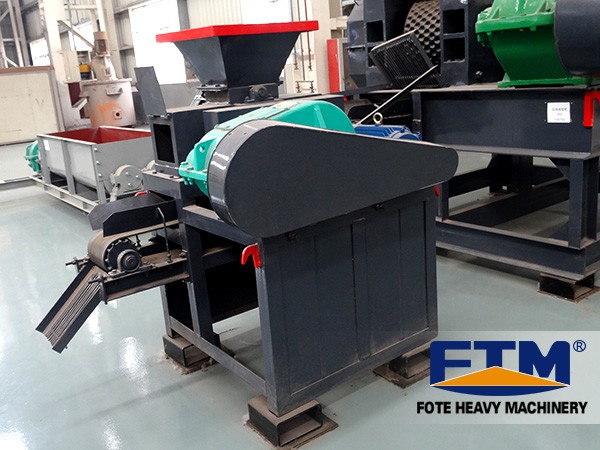

Strong Briquetting Machine

briquette machine

Strong Briquetting Machine Features

Fote strong briquette machine can be made flexibly by adjusting its pressure according to different ball pressing densities, and it is suitable for pressing materials with high hardness.

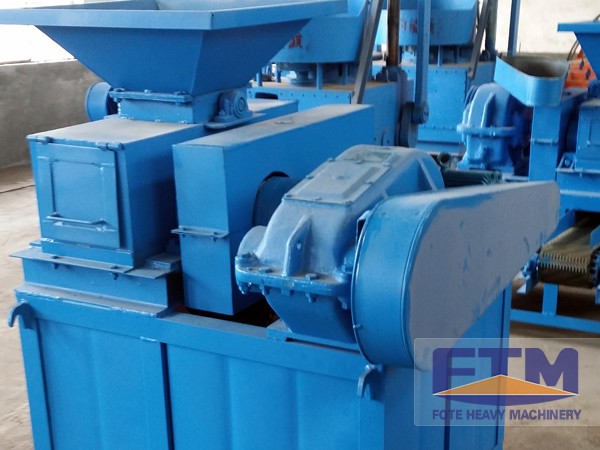

Strong Pressure Ball Machine

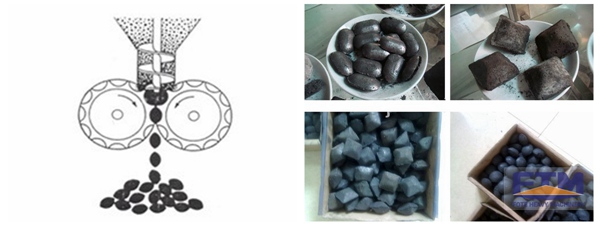

Strong Briquetting Machine Working Principle

1. When too many materials or metal blocks enter the space between the two compression rollers, the piston rod of the hydraulic cylinder gets so pressed that the pump will stop working and the energy accumulator will make buffer action facing pressure changing.

2. Then the flood valve starts the oil return and the piston rod replacement will widen the space between the rollers thus forcing hard materials to pass the rollers.

3. Finally, the whole system pressure returns to normal condition so that the rollers won't be damaged. The strong briquetting machine can be made flexibly by adjusting its pressure according to different ball pressing density.

Parameter

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
