Agitation Tank

Agitation Tank

Effective Volume: 0.26 - 30 m³

Power Range: 1.1 - 22 kw

Processed Materials: Various metal and nonmetal materials.

Application: Materials mixing in ore processing plant, building materials, road, railway, etc.



Chat Online Get Latest Price

Overview

Agitation Tank Introduction

Agitation tank is made of stainless steel, with movable flaps for easy feeding. Fixed spindle speed and frequency control can be designed according to users' requirement. Mixing barrel is with uniform mixing, no precipitation and other advantages.

Agitation tank is suitable for a variety of metal ores, mainly used for mixing before flotation to thoroughly mix pulp and pharmacy, as well as used for mixing other non-metallic minerals.

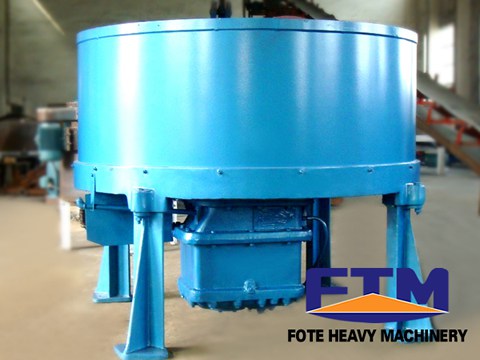

Stirring Tank

Agitation Tank Features

1. Compact structure and reliably sealing. Besides, there is an ash damper installed at the mouth of discharging gate, which can prevent water and flog to enter in.
2. Evenly mixing.
3. There are many rows of nozzles, which can guarantee that water can flow evenly.
4. There is a watershed set on the bottom, so the whole agitation tank is very clean.
5. Advanced equipment performance, stable quality of finished pulp, even mixing and quick discharging.

Agitation Tank Working Principle

When the agitation tank works, under the rotation of the impeller, the ore pulp and the reagents will have big and small circulation, and they will be evenly mixed, and the mixed suspension liquid will be discharged from the overflow port.

Parameter

Category Specification
 Model
Dimensions Effective
cubage(m³)
Rotate
speed(r/min)
Motor
power
(kw)
Dimensions
(L×W×H)
(mm)
Total
weight
(kg)
Diameter
(mm)
Height
(mm)
Agitating
 tank
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521 1050
XB-12×12 1200 1200 1.18 390 2.2 1130×1330×1721 1160
XB-15×15 1500 1500 2.2 280 3.0 1750×1640×2190 1270
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850 1700
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540 3500
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010 5200
XB-35×35 3500 3500 29 230 30 3920×3740×4970 6630
XB-40×40 4000 4000 45 210 37 4520×4320×5570 7830
Lifting
type
XBT-10×15 1000 1500 1 510 2.2 1130×1130×2070 1250
XBT-15×20 1500 2000 2.9 400 4 1636×1768×2785 1677
XBT-20×20 2000 2000 5.6 312 11 2180×2220×3015 3100
High-
efficiency
 leaching
 tank
XF-20×20 2000 2000 7.07 82.5 1.5 2032×2032×3595 2400
XF-25×30 2500 3000 13.5 57.6 2.2 2532×2532×4152 3670
XF-30×30 3000 3000 22.97 50.0 2.2 3180×3180×4673 5340
XF-35×40 3500 4000 35.6 41.0 4.0 3685×3685×5314 7140
XF-40×45 4000 4500 52.78 33.5 4.0 4185×4185×5814 9300
XF-45×50 4500 5000 74.75 33.5 5.5 4685×4685×6466 10500
XF-50×56 5000 5600 102.1 30.6 5.5 5185×5185×6975 12300
XF-55×60 5500 6000 135.4 24.4 7.5 5670×5670×7569 13500
