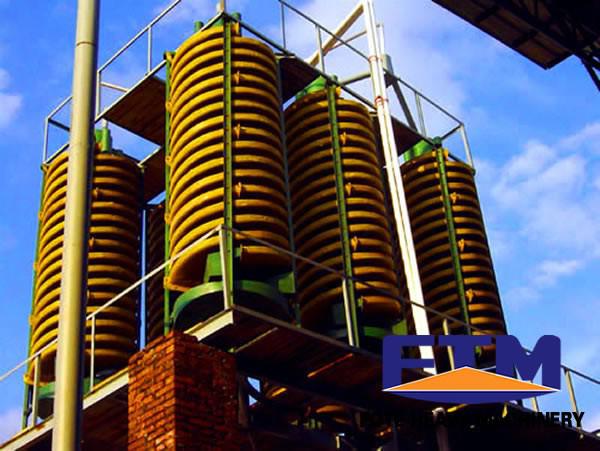

Spiral Separator

Spiral Separator

Input Size: 0.03 - 1 mm

Processing Capacity: 2 - 40 t/h

Processed Materials: Iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, niobium ore, etc.

Application Range: Ore processing plant and other industrial sectors.



Chat Online Get Latest Price

Overview

Spiral Chute Separator Introduction

In order to meet the greater and greater demand of raw mineral materials, the research and development of new equipment is focusing on precision. Spiral chute separator is the best equipment of mining and beneficiation machines, especially used in the placer mining of waterfront, river, sand beach and creek road. Gravity spiral chute occupies less area, and it is easy to operate.

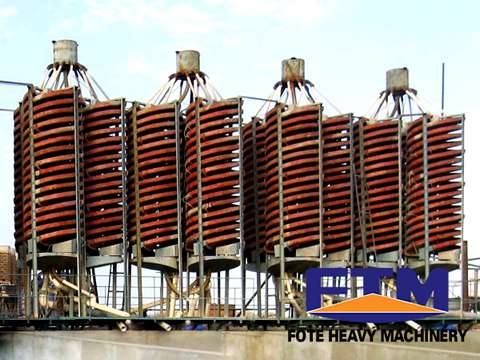

Spiral Chute Separator

Spiral Chute Separator Features

Spiral separator has the following advantages: light weight, moisture-proof, rust-proof, corrosion-proof, strong adaptation to fluctuations. Gravity spiral chute occupies less area, and it is easy to operate.

Spiral Chute Separator Working Principle

Erect the spiral chute separator, calibrate the perpendicular line and fix it in a proper position with iron structure or wood. Send the mineral sand with the sand pump to the two feeding mouth on the top of the spiral chute, add make-up water to adjust the density of the ore pulp, and the ore pulp will naturally rotationally flow down and produce an inertial centrifugal force in the rotary slant flow. The gravity and the centrifugal force will separate the ores and sand according to the proportion, granularity and shape of the ore sand, and the ore concentrate will flow into the concentrate funnel and be discharged with the pipe and the tailings will flow to the tailing funnel and be discharged to the sand tank with the pipe and drained by the sand pump to complete the whole separation process.

Parameter

Model Processing capacity
(t/h)
DL2000 15-40
DL1500 8-16
LL1200 4-6
LL900 2-3
