Single-stage Crusher

Single-stage Crusher

Feeding Size: ≤800 - ≤1250 mm

Product Size: <3-8 mm

Capacity: 100 - 420 t/h

Power: 160 - 630 kw



Chat Online Get Latest Price

Overview

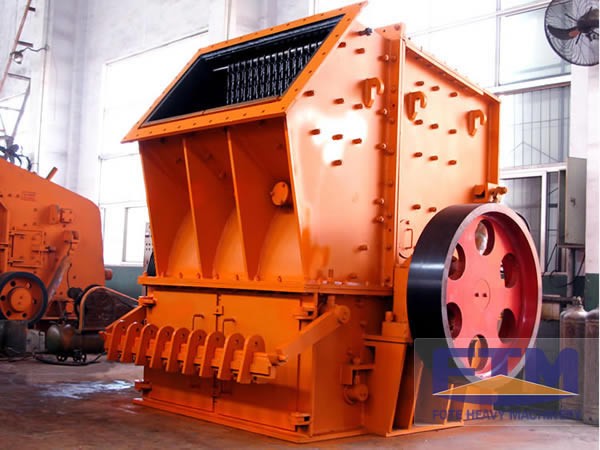

Single-stage Crusher Introduction

Single-stage crusher or single stage crusher can directly crush materials with particle size of 600-1800 mm to 25 or 25 mm, mainly used for crushing in building materials, mining, chemical and other departments crushing brittle and medium-hard materials, and materials with low moisture content such as limestone, rock and so on. Compressive strength of the material should be not more than 140 MPa. Single-stage crusher has large crushing ratio, low power consumption, small footprint, easy maintenance and other features.

Single-stage Crusher

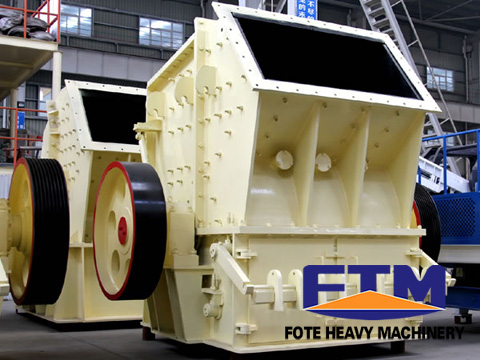

Single-stage Crusher Features

1. Large breaking ratio, with maximum feeding size up to 1.3-1.5m;
2. Adjustable particle size range of 3-150mm;
3. Good aggregate grain shape, powdery material ≤ 20%;
4. Work simplification can simplify the original two-stage or three-stage crushing to one-stage crushing;
5. Low operating costs, small power greatly reduces the production cost.

Single-stage Crusher

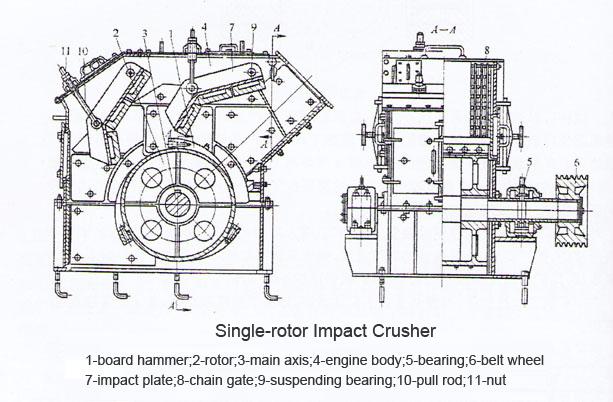

Single-stage Crusher Working Principle

After materials go into the crushing chamber of single-stage crusher, they will pile up on the middle bracket specially set inside the single stage crusher. The hammers run between the gap of the middle bracket and continuously crush the materials that will fall down. The falling small-sized materials will be further impacted and crushed by the hammers running with high speed, and finally the materials will be discharged from the bottom.

Parameter

Model Type Rotor diameter Feeding size
(mm)
Product Size
(mm)
Capacity
(t/h)
Power
(kw)
DPC140 Single Rotor 1400 ≤800 <3-8 100-140 6P   160-220KW
DPC160 1600 ≤1000 150-240 4P   280-355KW
DPC200 2000 ≤1250 330-420 6P   500-630KW
