Sand Maker

Sand Maker

Feed Size: 35 - 60 mm

Processing Capacity: 12 - 360 t/h

Processible Materials: Iron ore, copper ore, gold and silver ore, manganese ore, cement, artificial sand, fluorite, limestone, slag, etc.

Application Range: Highway, high speed railway, high-rise buildings, municipal administration, water and electricity dam construction, concrete mixing plant.



Chat Online Get Latest Price

Overview

Sand Maker Introduction

Sand maker, also known as sand making machines, sand making machinery, vsi crusher and artificial sand maker, currently has become mainstream device in sand making industry instead of hammer crusher, roller crusher, rod mill and other traditional sand making machinery.

The sand maker produced by our company is suitable for fine crushing of all kinds of ores, cement, refractory, bauxite, corundum, broken glass and so on.

Sand Maker

sand maker

Sand Maker Features

1. Simple structure and low construction cost;
2. High crushing efficiency and energy saving;
3. Fine crushing and rough grinding functions;
4. Strong ability of filtering materials.

Sand Maker

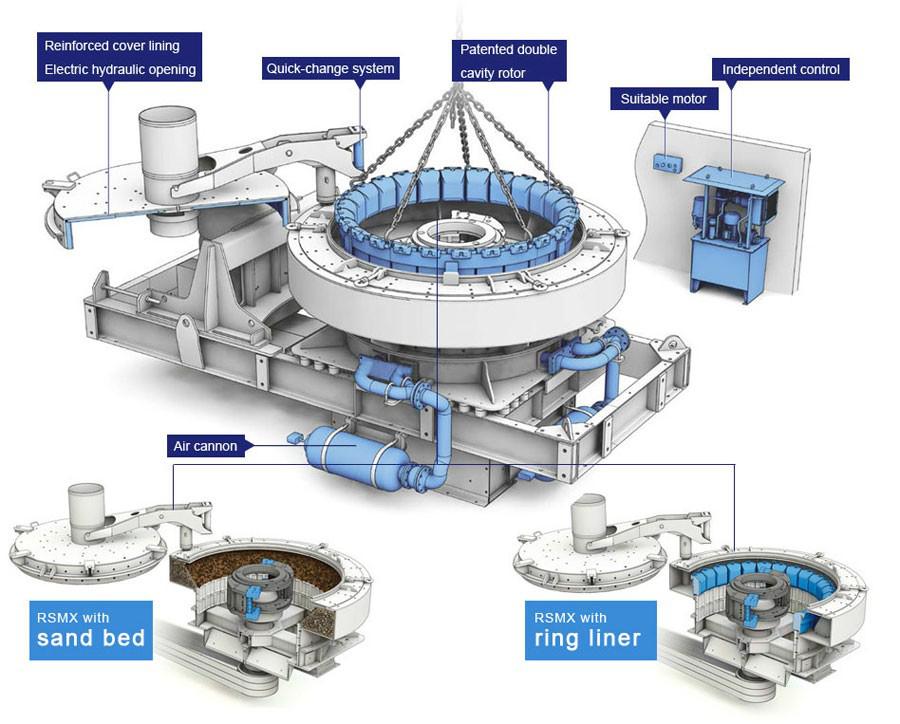

Sand Maker Working Principle

1. After entering the sand making machine or VSI crusher, materials are divided into two parts by the distributor. Some enter the high speed spinning impeller through the middle part of the distributor, get speeded up with the accelerated speed of hundred times of gravitational acceleration and thrown out of the three runners evenly spreading in the impeller at the speed of 60-70m/s.

Sand Maker

2. Then some materials falling around the distributor are crushed and impact into the vortex motion cavity, get rebounded by the material lining, get impact inclined up to the top of the vortex motion cavity, then change the direction of motion and finally form the continuous material curtain with materials launched from the impeller runner.

3. Therefore, materials will suffer two or more times of impact, grinding and crushing in the vortex motion crushing cavity. The crushed materials are discharged from the discharge gate in the bottom of the sand maker.

Parameter

Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
FTM-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
FTM-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
FTM-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
FTM-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450
