Roller Crusher

Roller Crusher

Feed Size: ≤25 - ≤100 mm

Processing Capacity: 5 - 100 t/h

Processible Materials: Limestone, slag, coke, coal, salt, chalk, gypsum, alums, brick, tile, etc.

Application Range: To crush medium and high hardness materials in the industries of cement, electricity, chemical engineering, metallurgy, construction materials and refractory matter.



Chat Online Get Latest Price

Overview

Roller Crusher Introduction

Roll crusher, with other names of roller crusher, teeth roll crusher or double roll crusher, is mainly used for secondary crushing or tertiary crushing of raw materials such as coal, coal gangue, coke, limestone, sulfur ore, phosphate rock and other materials. Its crushing way is roll extrusion, and the compression strength of to-be-broken material does not exceed 80PaM.

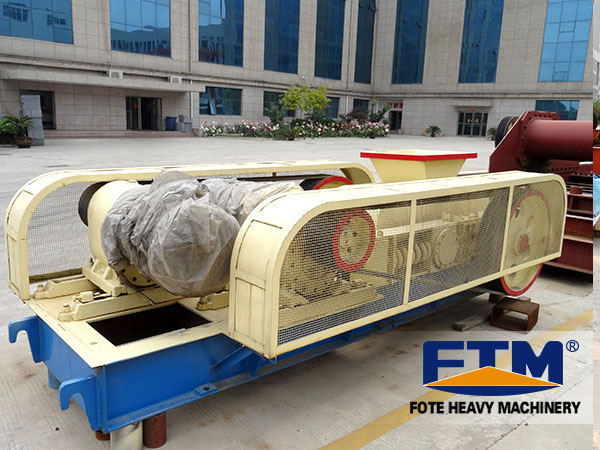

Roller Crusher

Roller crusher is mainly used for general crushing and fine crushing of ores and rocks with high and medium hardness in mineral processing, chemical, cement, refractory, abrasives, building materials and other industrial sectors.

Roller Crusher Features

Roll crusher is with reliable running, easy maintenance, low running costs, adjustable particle size and other features.

Roller Crusher Working Principle

The materials to be crushed fall from the feeding mouth to the space between the two rolls, after being squeezed and crushed, the final products will naturally fall. When there are too hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of hydraulic cylinder or spring to increase the gap between the rolls, and the too hard materials or the materials that cannot be crushed will fall down, thus protecting the machine from being damaged.

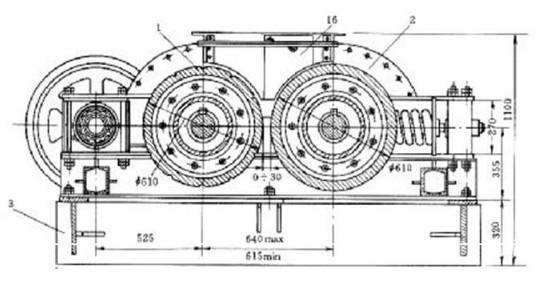

Roller Crusher

There is a certain gap between the two rolls that rotate at the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. Double roll crusher crushes the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction.

Parameter

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф600 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
Total weight(t) 2.2 5.9 9.8 13.5 17.2 28.5 39.3
