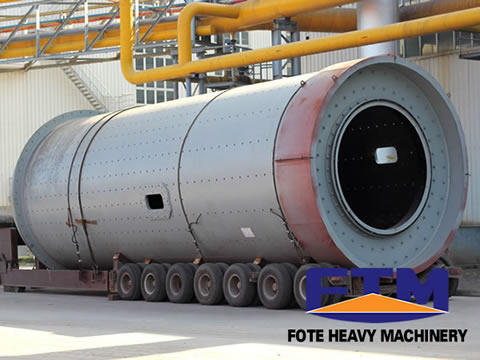

Raw Material Mill

Raw Material Mill

Production Capacity: 4.5–210 t/h

Motor power: 130–3550 kw

Total weight: 25.8–476 t

Material handling: cement, Portland products, new building materials, refractories, ceramics, glass, etc



Chat Online Get Latest Price

Overview

Raw Material Mill Introduction

Raw material mill is one of the major cement equipments and is the key equipment for grinding materials after being broken, so it is widely used in dry or wet grinding process of all kinds of ores and other materials in industries of cement, silicate, new building material, refractory material, fertilizer, black and non-ferrous metal and glass ceramics.

Raw Material Mill Features

The turning gearwheel of raw material mill adopts casting hobbling process and the drum is equipped with wear-resistant liner, with good wear resistance. The raw material mill machine is with stable and reliable working condition.

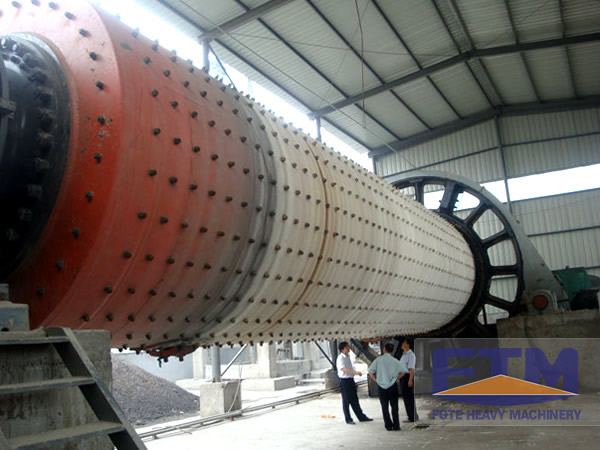

Raw Material Mill

Raw Material Mill Working Principle

When the cylinder of the ore grinder rotates driven by the transmission gear, under the inertial centrifugal force, the grinding media will stick onto the lining board on the internal wall of the cylinder of the ore grinder and rotate together with the cylinder. The grinding media are brought to a certain height, and then fall down under the gravity, and during this process, the grinding media will crush the materials inside the cylinder, and at the same time the grinding media repeatedly move up and down inside the rotating grinding mill and will have sliding and rolling movement, so that the grinding media, the lining board and the materials to be ground will grind with each other, so that the materials are crushed to a finer granularity.

Parameter

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.5×5.7 Open flow Brim ZD40 3.55 130 4.5-6 25.8
Φ1.8×6.4 Open flow Brim ZD60 4.5 210 7.5-15 43
Φ2.2×6.5 Circle flow Brim ZD70 5 380 14-26 60
Φ2.4×7 Circle flow Brim ZD70 5 475 24-28 81
Φ2.4×10 Circle flow Brim ZD80-4-LL 6.44 570 32-36 118
Φ2.6×10 Circle flow Brim JDX710 6.3 800 45-50 130
Φ3×9 Open flow Brim JDX800 6.3 1000 55-60 158
Φ3.2×9 Circle flow Brim MBY900 7.1 1250 62-65 195
Φ3.5×10 Open flow Brim JDX900 5.84 1250 70-75 200
Φ3.8×7.5 Circle flow Brim JDX900 5.6 1600 80 233
Φ4.6×10+3.5 Circle flow Central shaft JQS3550 15.1 3550 190 415
Φ4.6×10.5+3.5 Circle flow Central shaft JQS3550 15.1 3550 210 476
