Metal crusher

Metal crusher

Rotating Speed: 900 - 1800 r/min

Processing Capacity: 0.5 - 4.5 t/h

Motor Power: 18.5 - 105 kw

Total Weight: 2.2 - 19 t



Chat Online Get Latest Price

Overview

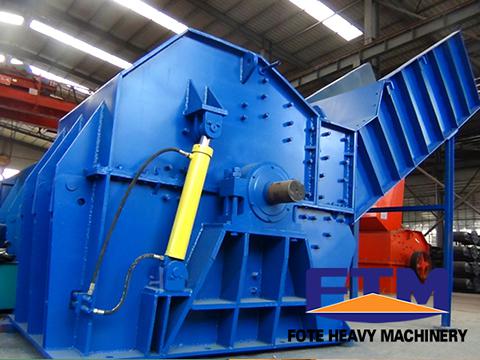

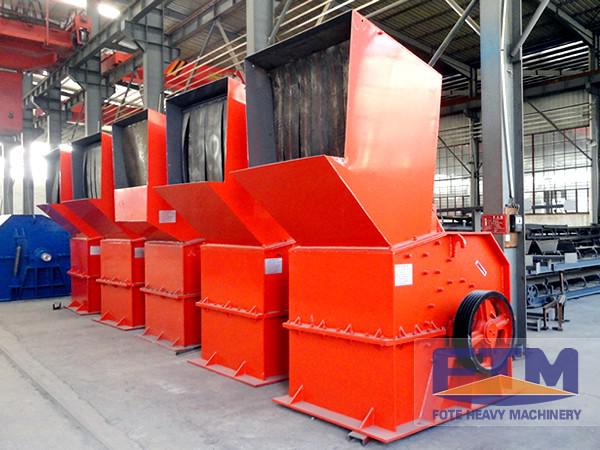

Metal crusher Introduction

Metal crusher is also called metal crushing machine, metal crushing equipment, scrap metal crusher or scrap metal crusher machine. Metal crusher is popular metal processing equipment in metal recycling industry, and Fote metal crushing equipment can crush various materials such as Sprite tin, Lulu tin, Red Bull tin, Coke tin, as well as paint tank and machine oil tank. The crushed material is very easy to be carried and delivered.

Metal crusher

Metal crusher Features

1. Fote metal crusher is driven by gear motor, can save electricity of 20% than that of other metal crusher.
2. Start without too much noise, and the foundation is installed.
3. The blade of scrap metal crusher machine is refined from high-alloy, has good crushing effect on any materials with high hardness.
4. The metal crusher is with strong structure to ensure strong cabinet.
5. Fote scrap metal crusher machine can be configured with conveyor belt and feeding machine.

Metal crusher

Metal crusher Working Principle

Scrap metal crusher machine uses electrical machine to lead wind wheel to extrude materials, and its core principle is hit with hammer of metal crushing machine. The feeding mouth of metal crusher is with filter type belt, and under the driving of high-speed big torque motor, the hammer head on host hit materials in crushing cavity and crush materials into required size. According to the working conditions, metal crusher can be divided into dry system, wet system and half wet system.

Dry system mainly means the to-be-crushed materials have to pass through air maneuvers sorting system, for separating metallic and non-metallic materials, and the entire system is equipped with a dust collection device. Wet system means materials are crushed with water, and watering for cleaning at the separating step.

Parameter

Model Feederopening(mm) Outputsize (mm) Power (KW) capacity(T/H) Weight (T) Dimensions (LxWxH)
FTM-400 500x600 10-40 18.5 0.5-0.7 2.2 1720660x1850
FTM-800 700x800 10-50 30 1-1.2 3.6 1910x850x1990
FTM-1000 900x1000 14-70 75 2.5-3 6.5 2000x1070x1990
FTM-1200 1000x1200 20-60 90 3-3.5 10 2400x1090x2270
FTM-1600 1200x1600 20-100 112 3.5-4.5 18 3240x1730x3630
FTM-1800 1200x1800 20-120 132 4.5-5.5 24 3620x1910x3870
FTM-2000 1200x2000 20-140 160 5.5-6.5 37 4140x2230x4279
