Industrial Drying Machine

Industrial Drying Machine

Power: 7.5 - 75 kw

Production Capacity: 2.5 - 36 t/h

Application Range: Industries of slag, sand, construction materials, metallurgy, food, chemical engineering, coal, medicine and minerals.

Processible Materials: Slag, clay, limestone, ardealite, dry-mixed mortar, grain slag, coal slime.



Chat Online Get Latest Price

Overview

Industrial Drying Machine Introduction

Industrial drying machine or industrial dryer is commonly used in dressing, metallurgy, construction, road, etc. There are many kinds of industrial dry mining equipments, such as three-cylinder dryer, river sand dryer, rotary dryer, etc.

 The coal consumption and power consumption of industrial dryer machine is lower 10-15% than that of ordinary industrial dryer, while the productivity is higher 10-15% than that of ordinary industrial dryer.

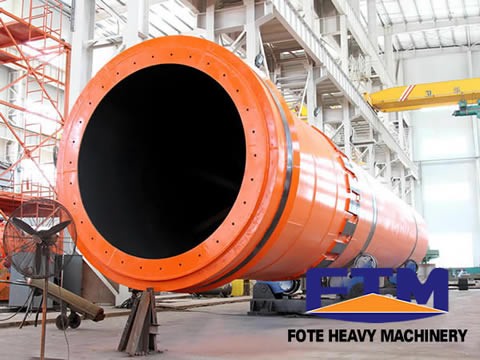

dryer

Fote is one of the most famous dryer manufacturers in China, and Fote dryers are with reliable quality, stable operation and reasonable price, so Fote is worth your trusted.

Industrial Drying Machine

Industrial Drying Machine Features

1. Use multi-modular lifting devices, high thermal efficiency, low coal consumption.
2. Industrial drying equipment is suitable for a variety of furnace, high temperature boiling furnace, grinding powder coal stove and artificial add coal stove.
3. Transmission gear uses changeable pin column gear instead of traditional cast steel wheel to save investment cost and decrease the maintenance cost and time.
4. Industrial drying machine uses centralized control system, to achieve the micro computer monitoring and management of large enterprises.

Industrial Drying Machine Working Principle

The air sucked by the exhaust fan into the dryer gets heated through the heat exchanger; the wet materials inside the rotary dyer drum are turned over and over to change heat with the hot air. Then the moisture of the fabric is vaporized and ejected out from the dryer, so materials can be dried within a short time.

Parameter

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
