High-strength Grinding Mill Introduction

High-strength grinding mill is suitable for grinding the barite, limestone, ceramic, slag and other non-flammable materials with Mohs hardness not more than 9.3 and the humidity below 6.

The high-strength grinding mill is suitable for high fine powder processing of a variety of materials in mining, metallurgy, chemical industry, building materials or other industries. The finished product size can be adjusted (the smallest is up to 1000 mesh). High-strength mill can also produce coarse powder with 30-80 mesh.

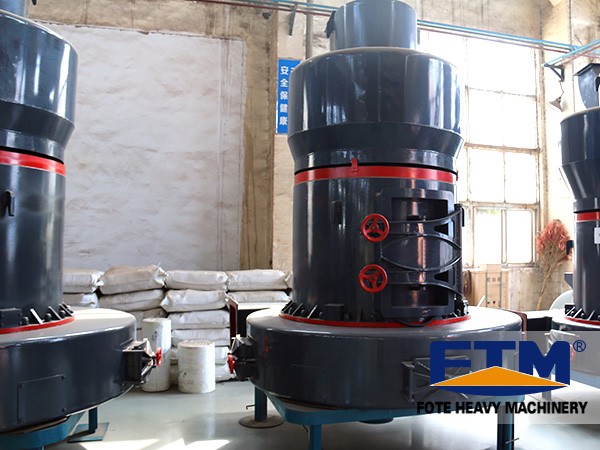

High-strength Grinding Mill

High-strength Grinding Mill Features

1. Compared to other grinding mill and under the same dynamic condition, its output can improve by 10-20%, the ground pressure of grinder roll to materials improve 800-1200kg under high pressure spring force.
2. The ore materials of 9.3 degree can all be processed and crushed.

3. The granularity of finished products has a wide range, and the largest diameter of particles can reach to 30 mu, the general diameter of particles is up to 0.033 millimeter(425 mu). The finest small amount of material can reach to 0.013 millimeter(1000 mu).
4. Dust removal effect can completely reach to the national dust emission standard.
5. The analytical engine is easy to adjust.
6. Abrasive device uses the superimposed multistage seal and good sealing property.

High-strength Grinding Mill

Parameter

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding size（mm）	<15	<15	<20	<25	<25	<25	<25	≤25	≤30
Size of finished product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
Shift output of different material fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed of central shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of pulverizing ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of pulverizing ring（mm）	150	210	250	270	300	300	310	410	450
Height of pulverizing roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor(kw)	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	2-22	4-37	4-75	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5
