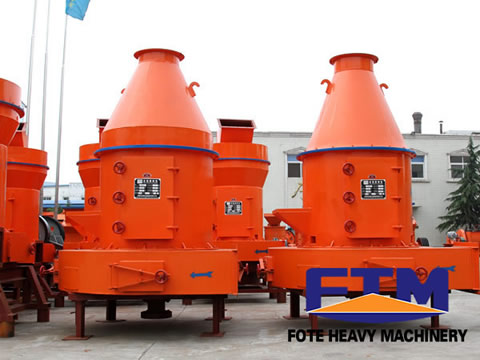

High Pressure Grinding Mill

High Pressure Grinding Mill

Feeding Size: ≤15 - ≤25 mm

Height of Pulverizing Roller: 210 - 300 mm

Rotate Speed of Central Shart: 140 - 180 r/min



Chat Online Get Latest Price

Overview

High Pressure Grinding Mill Introduction

High pressure grinding mill is commonly known as high pressure suspension grinding mill, bentonite grinding mill, quartz grinding mill, marble grinding mill, limestone grinding mill or lead oxide mill, widely used in barite, limestone, ceramic, slag, and other non-flammable materials with Mohs hardness not greater than 9.3 and humidity less than 6%.

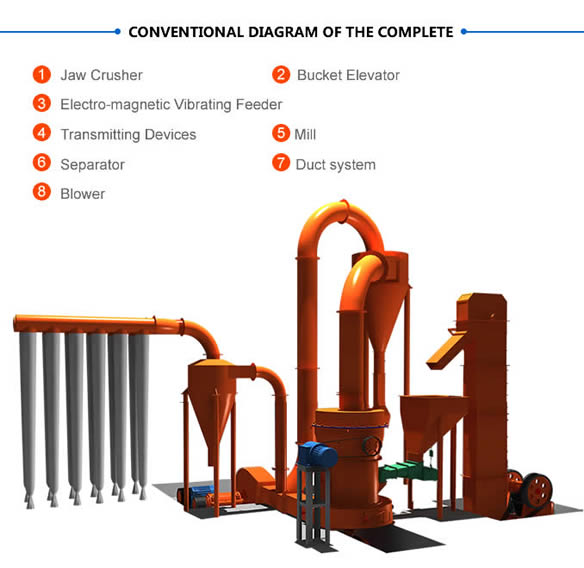

High pressure grinding mill is mainly composed  of host, blowers, superfine analysis machine, cyclone dust collector, bag type dust collector and connecting pipes.

Raymond mill

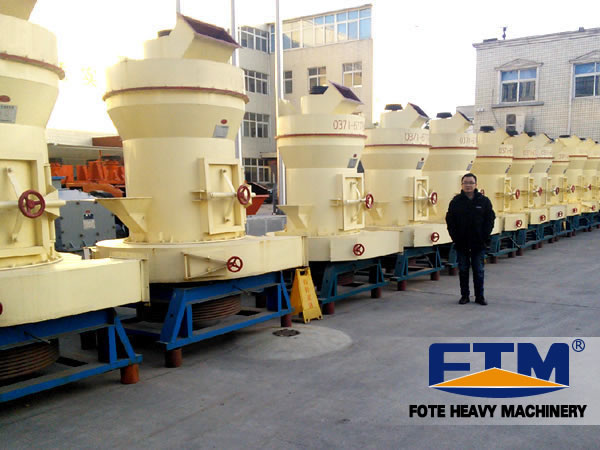

High Pressure Grinding Mill

High Pressure Grinding Mill Features

1. Wide application.
2. Increase pressure to 800-1200KG.
3. Save one third energy than similar products.
4. Low investment, great benefit.
5. Larger feeding size.
6. The electrical system adopts centralized control, with convenient maintenance.
7. Good dust collecting effect.

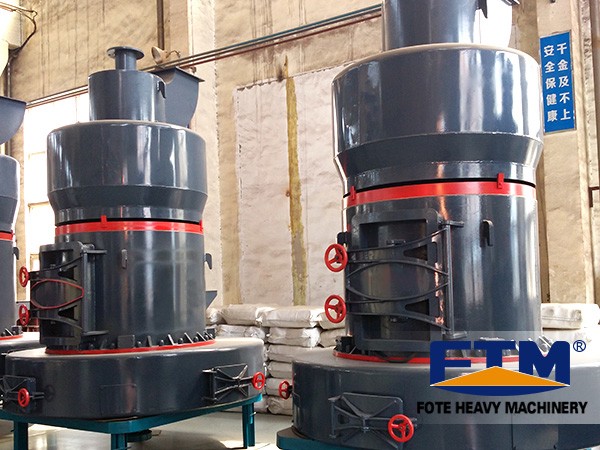

High Pressure Grinding Mill

High Pressure Grinding Mill Working Principle

1. Inside the grinding room of the micro powder mill, the grinding roll assembly hangs on the cradle of the grinding roll through the corss arm.

2. The cradle of the grinding roll, principal axis and the relieving tool post are fixed and connected and the pressure spring tightly presses on the outside end of the cantilever of the bearing room of the grinding roller through the tension bar.

3. The cross arm bearing is the supporting point, and the grinding roll is tightly pressed to the surface of the inner circle of the grinding ring through the spring pressure.

4. When electro motor rotates through the transmission device, the relieving tool on the relieving tool post and the grinding roll will synchronously rotate, and the grinding roll also rotates around itself while rolling on the surface of the inner circle of the grinding ring, and the analytical engine drives the impeller to rotate through the transmission device, and the adjustment of the speed of the analytical engine will determine the fineness of the final powders.

Parameter

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
