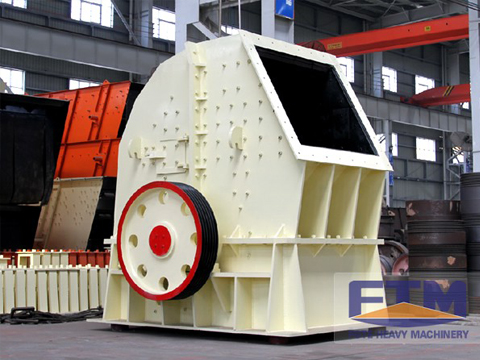

Heavy Hammer Crusher

Heavy Hammer Crusher

Feeding Size: ≤600 - ≤1200 mm

Production Capacity: 100 - 800 t/h

Power: 132 - 560 kw

Total Weight: 16.2 - 63.6 t



Chat Online Get Latest Price

Overview

Heavy Hammer Crusher Introduction

Heavy hammer crusher, also named as single stage hammer crusher manufacturer and hammer crusher machine, is applied to crushing various raw materials in  highways, high-speed railways, tunnels, large bridge, cement, metallurgy, building materials, coal, and chemical industry. The single stage hammer crusher manufacturer has large feeding size and small discharging size. The single hammer of hammer crusher machine has large weight, and the rotor speed is reasonable, which fully embodies the advantages of crushing light material with heavy hammer.

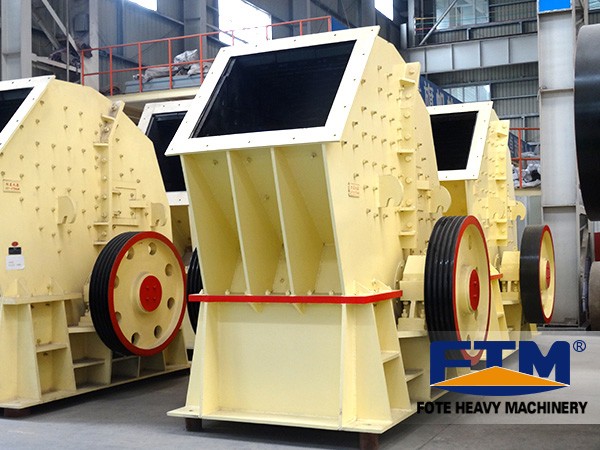

Heavy Hammer Crusher

Heavy Hammer Crusher Features

Heavy hammer crusher is new type of crusher improved based on the PC series crushers, according to users' feedback. Compared with traditional hammer crusher, the heavy hammer crusher enjoys heavy hammer head, high crushing line speed and other striking features, as well as large feeding size, large crushing ratio, low maintenance costs, etc.

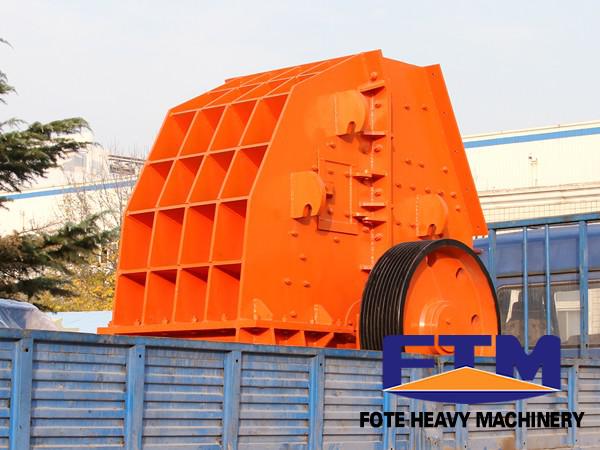

Heavy Hammer Crusher

Heavy Hammer Crusher Working Principle

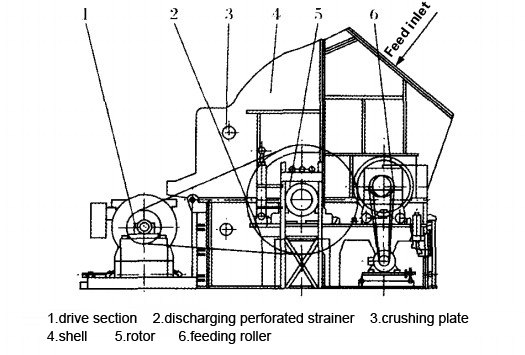

Main working part of heavy hammer crusher is the rotor of hammer (also known as the hammer head), and the rotor is formed by spindle, disc, pin roll and a hammer, and the rotor is driven by motor to make high-speed revolution in crushing cavity.

heavy hammer crusher

Materials are fed from the upper feeding port into the machine, and then be crushed by impact, shear, grinding and crushing of high-speed rotating hammer. Sieve is designed in the lower part of the rotor, so crushed item less than the size of mesh size will be discharged through the sieve board, while crushed item larger than the opening size will be left on the sieve plate for continues crushing and grinding by hammer, and finally be discharged through the sieve board.

Parameter

Model Rotor diameter×length
    (mm)
Feed opening Length×width
(mm)
Feeding size
   (mm)
Capacity
  (t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×1000 930×650 ≤600 100-180 4P   132 2818×2100×2391
PCZ1410 1400×1000 1020×750 ≤700 180-230 4P   160/2×90 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤900 260-350 4P   220-250/2×132 3370×2415×2751
PCZ1615 1600×1500 1400×1000 ≤900 380-550 4P   355-400/2×200 3371×2925×2752
PCZ1716 1700×1600 1640×1300 ≤1200 600-1100 4P   2×250 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤1200 800-1200 4P   2×400 3670×3390×3328
PCZ1920 1900×2000 1850×1600 ≤1500 900-1500 2×500 3729×3300×4451
PCZ2225 2200×2500 2100×2300 ≤1700 1500-3200 1250 3931×4100×4660
