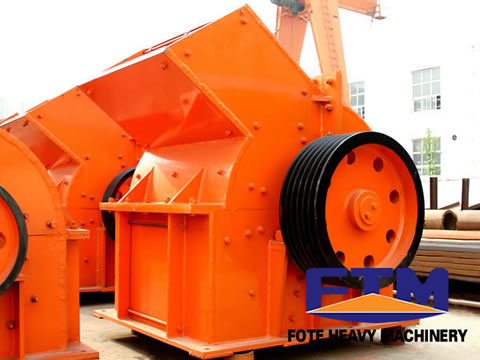

Hammer Crusher

Hammer Crusher

Feed Size: ≤200 - ≤350 mm

Processing Capacity: 5 - 150 m³/h

Processible Materials: Limestone, furnace slag, coke, cola, salt, chalk, gypsum, alums, iron ore, non-ferrous metals, granite, quartz stone, sandstone, cobbles, etc.

Application Range: Cement plant, metallurgy department, electric power department, construction material industry, mining and road construction industry.



Chat Online Get Latest Price

Overview

Hammer Crusher Introduction

Hammer crusher, also known as hammer crusher machine, uses high-speed rotary hammer to impact materials, making materials with required sizes.

Hammer crusher machine is suitable for crushing brittle materials, medium-hard materials and materials with low moisture content; as well as limestone, coal, shale, gypsum, chalk, asbestos ore, coke in building materials, chemicals, electric power, mining, metallurgy and other industries.

Hammer Crusher

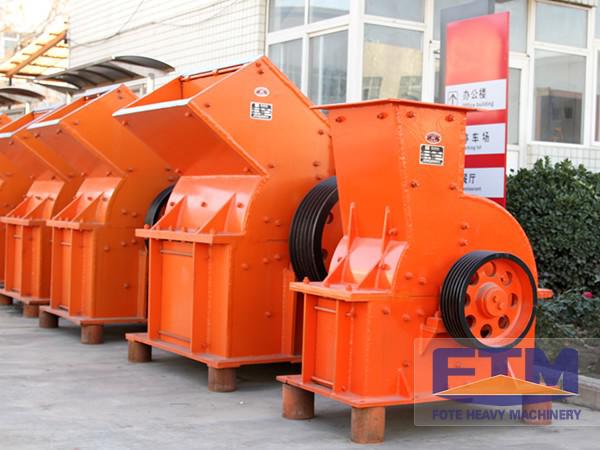

Hammer Crusher Features

Hammer crusher machine has advantages of compact structure, reasonable layout, easy to install and operate, especially excellent adaptability for cement production process, etc.

Hammer Crusher

hammer crusher

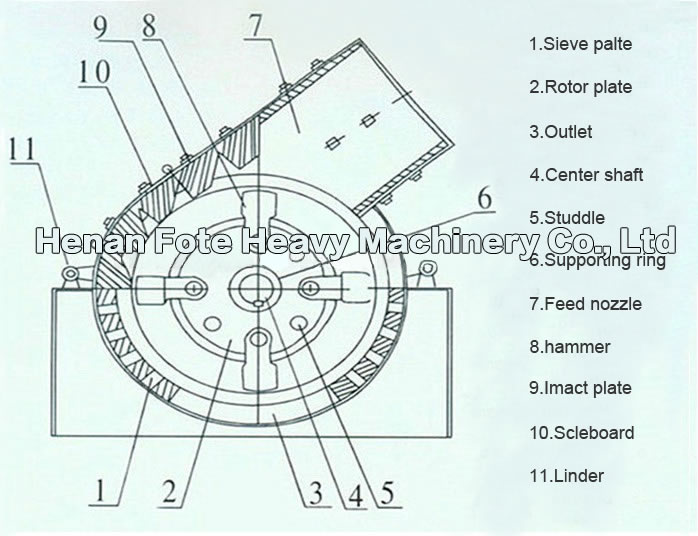

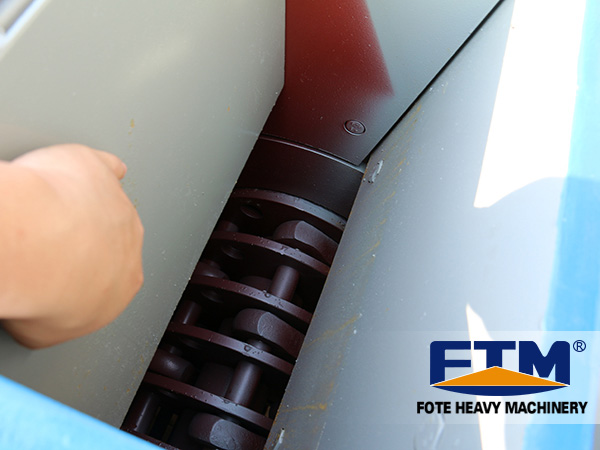

Hammer Crusher Working Principle

1. Hammer crusher machine mainly crushes the materials by relying on the impact force.

2. The crushing process mainly goes like this: the materials go into the crusher and are crushed by the impact of the hammers rotating with high speed.

3. The crushed materials will get kinetic energy from the hammers and rush to the baffle inside the crushing chamber with high speed and at the same time, the materials will impact with each other. After many times of crushing, the materials smaller than the gap of the grating bar will be discharged from the gap, and some big materials will stay on the grating bar to be impacted, ground, squeezed and crushed by the hammers and finally be discharged from the gap, thus getting the products with the desired granularity.

4. Hammer crusher can be divided into reversible type and irreversible type; the former has reversible rotors and is generally used for fine crushing and the latter has irreversible rotors and is generally used for medium crushing.

Parameter

Specification Capacity(m³/h)
Motor Power
(kw)
PCΦ400×300 5-10 4P 11KW
PCΦ600×400 10-22 4P 22KW
PCΦ800×600 18-40 6P 55KW
PCΦ1000×800 25-50 8P 75KW
PCΦ1000×1000 30-55 8P 90KW
