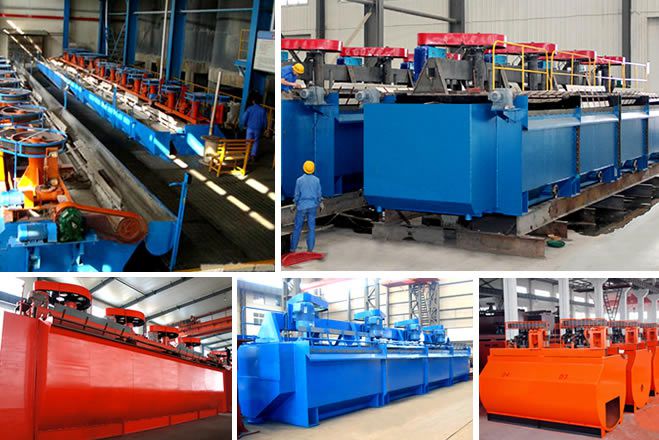

Flotation Machine

Flotation Machine

Effective Volume: 0.37 - 8 m³

Processing Capacity: 0.2 - 8 m³/min

Processible Materials: Non-ferrous and ferrous metals (copper, zinc, lead, nickel, gold, manganese, titanic iron ore, apatite, etc), non-metals (fluorite and talc), etc.

Application Range: Ore beneficiation industry



Chat Online Get Latest Price

Overview

Flotation Machine Introduction

In order to achieve the separation of mineral particles, mineral surface must have different wettability, and required quantity and quality of foam and proper mechanical equipment are needed for making them into products with different nature and quality, and the proper mechanical equipment is flotation machine (flotation cell, flotation-cell, flotation cells or flotation concentrator).

 Flotation machine is important equipment to achieve flotation process, and the performance of flotation machine has a significant relationship with the flotation effect.

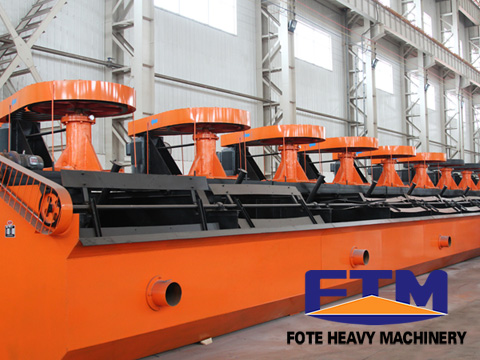

Flotation Machine

Flotation Machine

Flotation Machine Features

Flotation machine is with large inspiratory capacity and low energy consumption and horizontal arrangement, so foam pump is needn't. The peripheral speed of the impeller is low and the life of impeller cover is long.

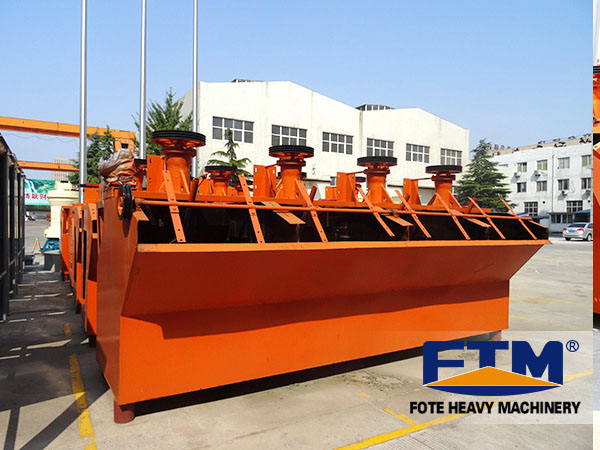

Flotation Machine

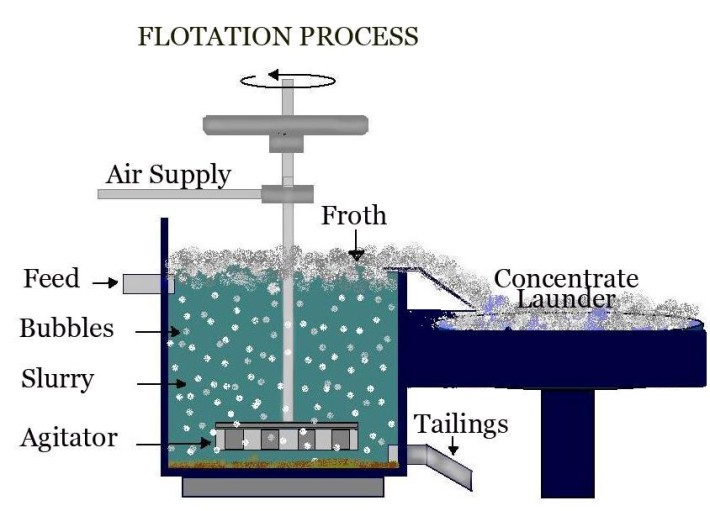

Flotation Machine Working Principle

Flotation cells run by the triangle belt of the electrical motor driving the impellor to rotate, producing centrifugal effect which will form negative pressure, and on one hand it will absorb sufficient air in order to mix with the pulp, and on the other hand it will mix the pulp in order to mix with the reagents, and at the same time will refine the foam in order to stick the minerals onto the foam, and float on the surface of the pulp in order to become mineralization foam. The workers can adjust the height of the flashboard and control the liquid level in order to scrap the useful foam.

Parameter

Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
Main shaft     loam board Dimensions
(L×W×H)
(mm)
Single
 trough
Weight
(kg)
Power
(kw)
Rotate
speed
(r/min)
Rotate
 speed
(r/min)
Power
(kw)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 700×700×700 460
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 900×820×850 980
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1100×1100×1000 1390
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1750×1600×1100 2430
XJK-5.8 5.8 5-7 22 240 25 1.5 2200×2200×1200 3533
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 700×700×750 468
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 900×820×950 990
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1100×1100×1100 1873
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1750×1600×1150 2538
SF-4 4 2-4 15 220 25 1.5 1850×2050×1200 2838
SF-8 8 4-8 30 191 25 1.5 2200×2900×1400 4129
SF-10 10 5-10 30 191 25 1.5 2200×2900×1700 4486
SF-20 20 5-20 30×2 191 25 1.5 2850×3800×2000 9828
JJF type
 flotation
machine
JJF-2 2 1-3 7.5 443 25 1.5 1400×1400×1100 1670
JJF-4 4 2-4 11 305 25 1.5 1600×2150×1250 2350
JJF-8 8 4-8 22 233 25 1.5 2200×2900×1400 4500
JJF-10 10 5-10 22 233 25 1.5 2200×2900×1700 4820
JJF-16 16 5-16 30 180 25 1.5 2850×3800×1700 8000
JJF-20 20 5-20 37 180 25 1.5 2850×3800×2000 10500
