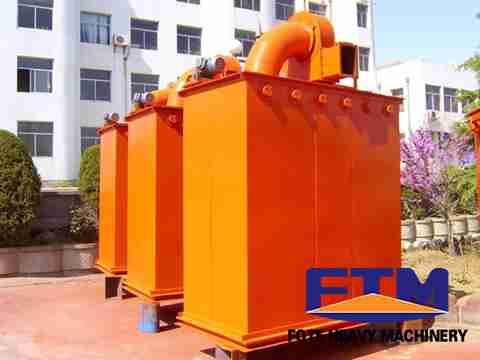

Dust Collector

Dust Collector

Filter-bag Number: 96 - 3584

Air Processing Capacity: 6912 - 322560 m³/min

Application Range: Construction materials, cement production, metallurgy, machinery, chemical engineering and refractory matter.

Advantages: High dust collection efficiency, wide air processing range, simple structure and easy maintenance.



Chat Online Get Latest Price

Overview

Dust Collector Introduction

The equipment which separates dust from flue gases is called  dust collector, dust catcher,dust separator or bag type dust collector. The price, operation and maintenance costs, length of life and ease of operation and management of dust catcher, dust collector, dust separator or bag type dust collector is also considered as an important factor of its performance.

Now, common-used dust collectors are cyclone dust collector and bag type dust collector.

Dust Collector Features

(1) No moving parts inside the precipitator, easy maintenance.
(2) Its production and management are very convenient.
(3) Small size, simple structure, low price.
(4) It can be installed vertically when used as a pre-filter, easy to use.
(5) High efficiency.

Parameter

Model filtering area
(m²)
Capcity
(m²/h)
fan model The fan motor Number of filter bag model of matched
german raymond
note
DMC24 18 1080~2160 4-72-3.2A Y90L-2-1.5kw 24
DMC36 27 1620~3240 4-72-3.6A Y100L-2-3kw 36  HGM88 HGM95
DMC48 36 2160~4320 4-68-4A Y112M-2-4kw 48  HGM100
DMC64 48 2880~5760 4-68-4A Y112M-2-4kw 64  HGM130 HGM 120
DMC80 60 3600~7200 4-72-4A Y132S1-2-5.5kw  80
DMC96 72 4320~8640 4-72-4.5A Y132S2-2-7.5kw  96 HGM60 HGM175
DMC112 84 5040~10800 4-72-4.5A Y132S2-2-7.5kw  112  HGM190
DMC128 96 5760~11520 4-72-4.5A Y132S2-2-7.5kw  128   Selecting Based on Air Volume.
More Dust, Lower Filter Wind Speed.
8640~14400 4-72-5A Y160M2-2-15kw  128
DMC150 112.5 6750~13500 4-72-5A Y160M2-2-15kw  150
10000~20000 4-68-6.3C Y180M-2-22kw  150
DMC180 135 12000~24000 4-72-8C Y200L-2-30kw  180   Multipe Dust Collection & Location Timing.
A Settling Room is a Must.
DMC220 165 15000~34000 7-72-8C Y200L-2-37kw  220
