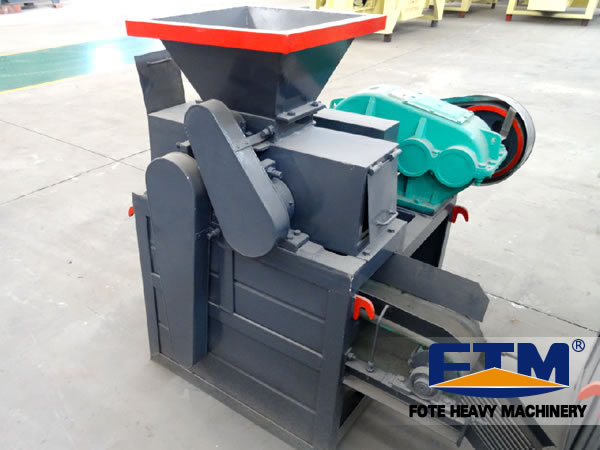

Dry Powder Briquette Machine

Dry Powder Briquette Machine

Production Capacity: 1 - 3.5 t

Diamter of Press Roll: 367 - 528 mm

Motor Power: 37 - 55 kw

Preformer Power: 11 - 15 kw



Chat Online Get Latest Price

Overview

Dry Powder Briquette Machine Introduction

Fote dry powder briquette machine or quicklime dry powder briquetting machine can bear high pressure and can manage high strength work, mainly used to make balls and realize agglomeration from ferrous and non-ferrous metal powder.

The mineral powder directly enters the smelting furnace with increasing additional value. All metallurgy wastes with auxiliary materials to smelt including fly ash, sludge, oxide skin, slag, iron fine powder, aluminum ash and manganese mineral powder need this machine to process.

Dry Powder Briquette Machine Features

Fote dry powder briquette machinee is applied to press dry powder materials which are hard to form balls. Its features are forming hardness, adjustable mainframe revolution and auxiliary spiral feeding machine.

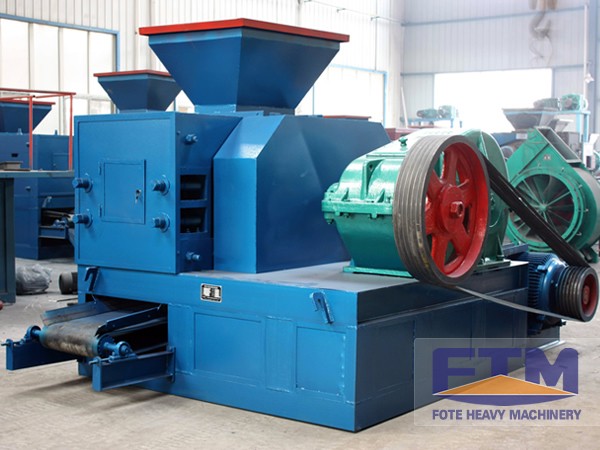

briquette machine

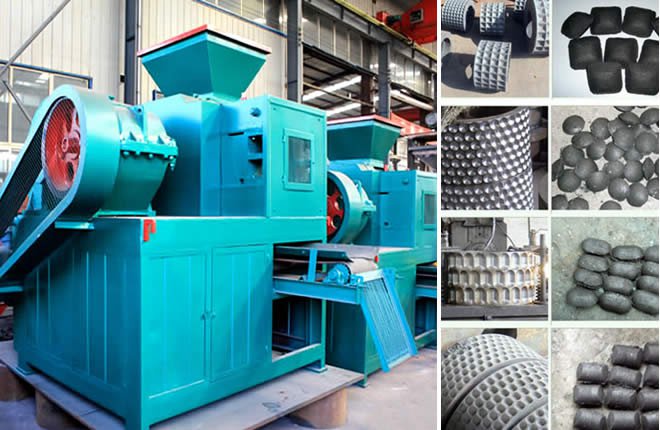

Dry Powder Briquette Machine

Dry Powder Briquette Machine Working Principle

1. The hydraulic pressure protecting device adopts its pump to press the high pressure oil into the cylinder and makes the piston moves with axial displacement.

2. The front connecting end of the piston rod supports the shaft block to meet production requirement. When too many materials or metal blocks enter the space between the two compression rollers, the piston rod of the hydraulic cylinder gets so pressed that the pump will stop working and the energy accumulator will make buffer action facing pressure change.

3. Then the flood valve starts the oil return and the piston rod replacement will widen the space between the rollers thus forcing hard materials to pass the rollers. Finally, the whole system pressure returns to normal condition so that the rollers won't be damaged.

4. The quicklime dry powder briquetting machine can be made flexibly by adjusting its pressure.

Parameter

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
