Desulfurization Gypsum Briquette Machine

Desulfurization Gypsum Briquette Machine

Diameter of Roller: 500 - 1000 mm

Theoretical Yield: 10 - 35 t/h

Motor Power: 37 - 130 kw



Chat Online Get Latest Price

Overview

Desulfurization Gypsum Briquette Machine Introduction

Desulfurization gypsum briquette machine and gypsum powder briquetting machine can be used to suppress coal ash, iron powder, coke, aluminum powder, iron oxide skin, toner powder, slag powder, gypsum, tailings, sludge, kaolin, activated carbon and other powder, scrap and waste, in refractory, power plants, metallurgy, chemical industry, energy, transportation, heating and other industries.

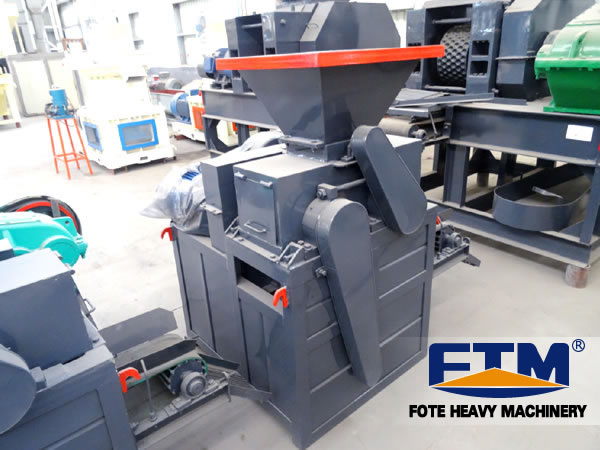

Desulfurization Gypsum Briquette Machine

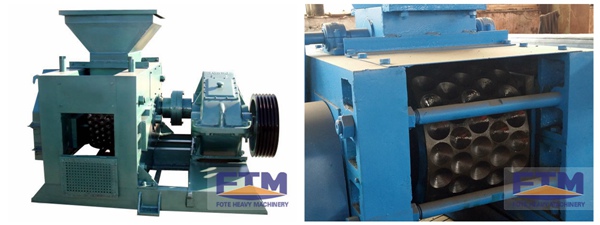

briquette machine

Desulfurization Gypsum Briquette Machine Features

Materials made by desulfurization gypsum briquette machine are energy saving, easy to transport, and can improve the utilization of waste materials, with good economic and social benefits.

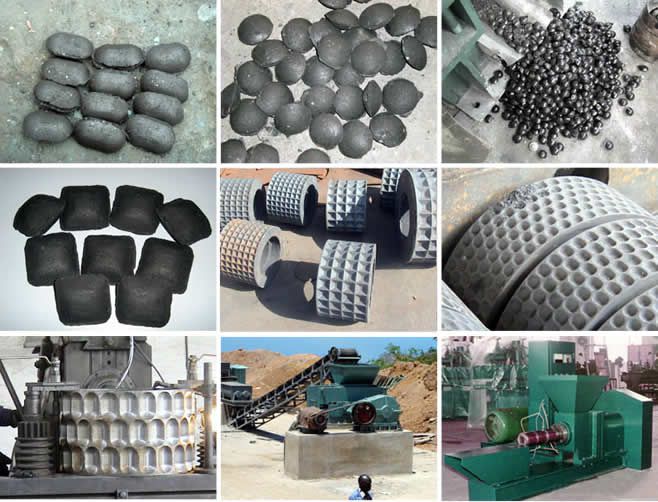

Briquette Machine Features

Desulfurization Gypsum Briquette Machine Working Principle

1. Materials generally enter the hopper of the make-up machine quantitatively through the storage bin and then enter the space between the twin rollers in general after adjustment shutter of the hopper changes.

2. Constant speed reverse running roller presses materials as the forming pressure changes from low to high and gets to the highest pressure at the connecting line of the twin rollers.

3. When passing the line, materials are in ball separation condition with the forming pressure getting lower quickly, thus finishing the separation process.

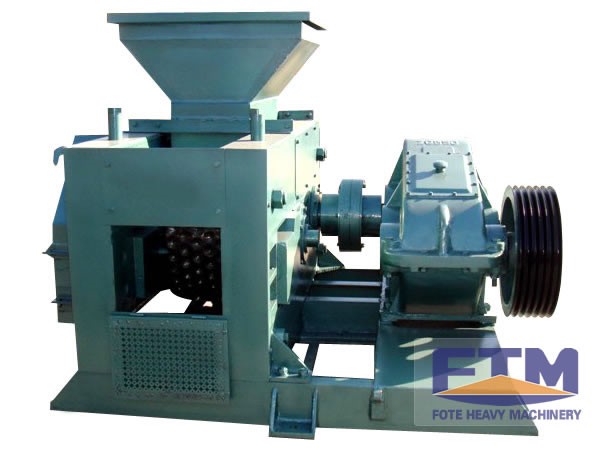

Desulfurization Gypsum Briquette Machine

Parameter

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
