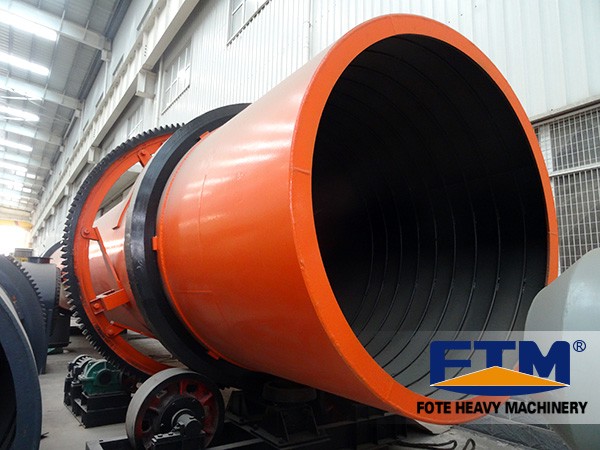

Cooling Machine

Cooling Machine

Production Capacity: 2–36 t/h

Main motor: 15–132 kw

Weight: 28–237 t

Installation obliquity: 3–5 %



Chat Online Get Latest Price

Overview

Cooling Machine Introduction

Cooling machine also can be called cooler, is one of the most important equipments in rotary kiln system; it makes clinker produced by rotary kiln get sufficient heat exchange with the air, and cools the temperature of clinker from 1000-1200℃ to 200 ℃, and improves clinker quality and grindability. The air used to cooling materials is stored into the kiln as a secondary circulating air, for improving the thermal efficiency of furnace.

Cooling Machine Features

1. Cooling machine can cool clinker with temperature of 1000-1200℃ to clinker with temperature of 200 ℃
2. The air used to cooling materials is completely stored into the kiln as a secondary circulating air to improve thermal efficiency of furnace.

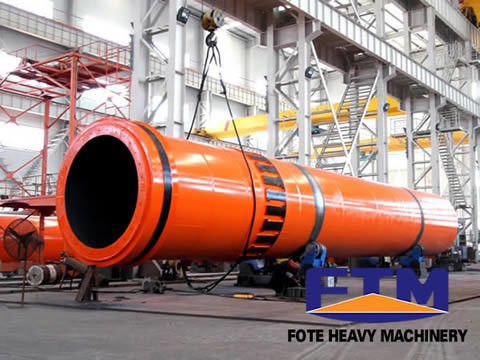

Cooling Machine

Cooling Machine Working Principle

Clinker with high temperature goes into the cooler through the feeding device, and the cooler will rotate to drive the materials to conduct heat exchange with the air, and with the constant rotation of the kiln according to the designed inclination and rotating speed, the materials will also periodically roll and move forward inside the kiln, so that the raw materials are send from the feeding end to the discharging end and cooled to below 200℃ in the time period when the materials go through the rotary kiln.

Parameter

Spec./m
(Dia×Length)
Capacity
(t/h)
Installation
Obliquity
(%)
Main Reducer

Main Motor
(kw)
Weight
(t)
Φ1.5×15 2~3 3~5 ZQ500 15 28
Φ1.5×20 3~4 3~5 ZQ500 15 35
Φ1.8×18 4~6 3~5 ZQ500 18.5 47
Φ2.0×22 7~8.5 3~5 ZQ500 22 61
Φ2.2×18 7~8.5 3~5 ZQ500 22 64
Φ2.2×22 8~10 3~5 ZQ650 30 73
Φ2.4×24 12~15 3~5 ZS125 45 98
Φ2.5×25 15~20 3~5 ZS125 55 110
Φ2.8×28 16~22 3~5 ZL100 55 130
Φ3.0×30 20~25 3~5 ZL115 75 169
Φ3.2×36 28~32 3~5 ZL115 90 200
Φ3.3×40 32~36 3~5 ZI130 132 237
Φ3.6×36 35~38 3~5 ZSY450-28 185 318
Φ4.0×36 50~60 3~5 ZSY450-25 220 348
Φ4.0×45 60~70 3~5 ZSY450-25 250 414
Φ4.5×50 70~75 3~5 ZSY500-25 315 576
