Coal Ash Dryer

Coal Ash Dryer

Outer Cylinder Length: 6 - 8.5 m

Production Capacity: 20 - 99 t/h

Application Range: Coal industry, ore beneficiation industry, steel making industry and sand making industry.

Processible Materials: Slag, sand, coal, coal ash, iron powder, minerals, silica sand.



Chat Online Get Latest Price

Overview

Coal Ash Dryer Introduction

Fly ash or coal ash dried by coal ash dryer and fly ash dryer can be used as admixture for cement, mortar and concrete, and can be part of the cement and concrete. Fly ash or coal ash can instead raw materials of cement to produce raw materials of cement clinker, fired brick, aerated concrete, foam concrete, sintered or non-sintered ceramsite hollow brick, etc.

 According to the moisture requirements of dried materials in different industries, the moisture content of dried materials can be reached 1-0.5%.

dryer

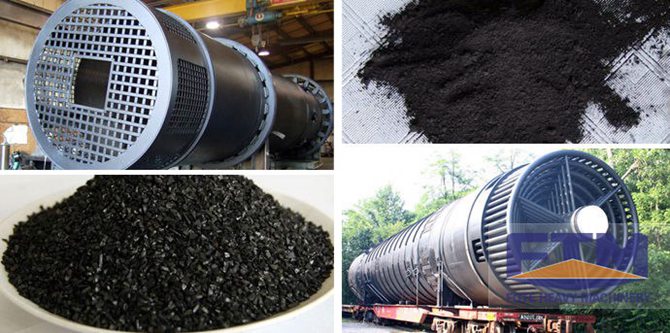

Coal Ash Dryer

Coal Ash Dryer Features

1. Low outlet temperatures, long service life of dust removal equipment.
2. Use new modular lifting device, so desired final moisture indicator can easily be regulated according to users' requirements.
3. High automation, easy operation, smooth running.
4. Low investment, quick earnings.
5. The fly ash dryer is new energy-saving product, with energy saving of 20% than that of other similar products.
6. Fuel such as coal, oil and gas can be used in fly ash dryer or coal ash dryer.

Parameter

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
